24 Port 96 Cores Rack Mounted 1U Optical Fiber Patch Panel ODF Full
Loaded LC UPC Quad
product description of 96 Cores Patch Panel ODF
Fiber Optic Patch Panel is an optical fiber wiring equipment
specially designed for an optical fiber communication room. It has
the function of fiber cable fixation and protection, optical cable
termination function, and line adjustment function. It is an
indispensable part of the computer room.
The rack mount patch panel is mainly used for connection and
storage between optical fiber cable and pigtail in equipment, The
box body is made of high-quality cold rolled steel, and
electrostatic spraying, the appearance is beautiful, and the
operation is convenient.
Product data of 96 Cores Patch Panel ODF:
* Standard: 19" rack mount dimension.
* Cable entrance: 4 ports, ⌀ 25mm.
* With cable lead-in, fixation, and protection devices.
* There is enough room for fiber storage, ensure the bending radius
is 15 times the diameter of the cable.
* Providing relevant accessories.
Features of 96 Cores Patch Panel ODF:
* High-quality cold rolled sheet forming, electrostatic powder
spraying technology, smooth surface, not easy to rust.
* High-strength sheet metal, long-term use is not easy to deform.
* The edges of metal parts are designed with rounded corners to
avoid damage to cables.
* The bottom plate is designed with a sliding design, for the patch
panel already installed on the cabinet, the wiring can be adjusted
without * removing the patch panel.
* The operating and storage temperature: - 45 ~ + 80 ℃.
* Tolerable humidity: <95%.
* The voltage resistance between the cable grounding device in the
shell and the shell is >3000V(DV)
* This is tested in 1 minute without breakdown and no flashover.
Application of 96 Cores Patch Panel ODF:
* Sliding rack mount patch panel integrates the 3 functions of
fiber fusion, storage, and distribution.
* It's used widely in the local end main cable net of fiber optic
communication areas.
* Suitable for the FTTB, and FTTH systems.
Details of 96 Cores Patch Panel ODF:
| Product name | Fiber Optic Patch Panel |
| Connector Type | Singlemode or multimode |
| Size | 1U 19" |
| Simplex or Duplex | Max 24 cores |
| Connector | SC, LC |
| Installation type | drawer type |
| Material | cold rolled steel sheet |
| Application | For Cable distribution |
| Color | Black, White, Grey |
| Warranty | Limited life |
| Product Keywords | Rack Mount ODF |

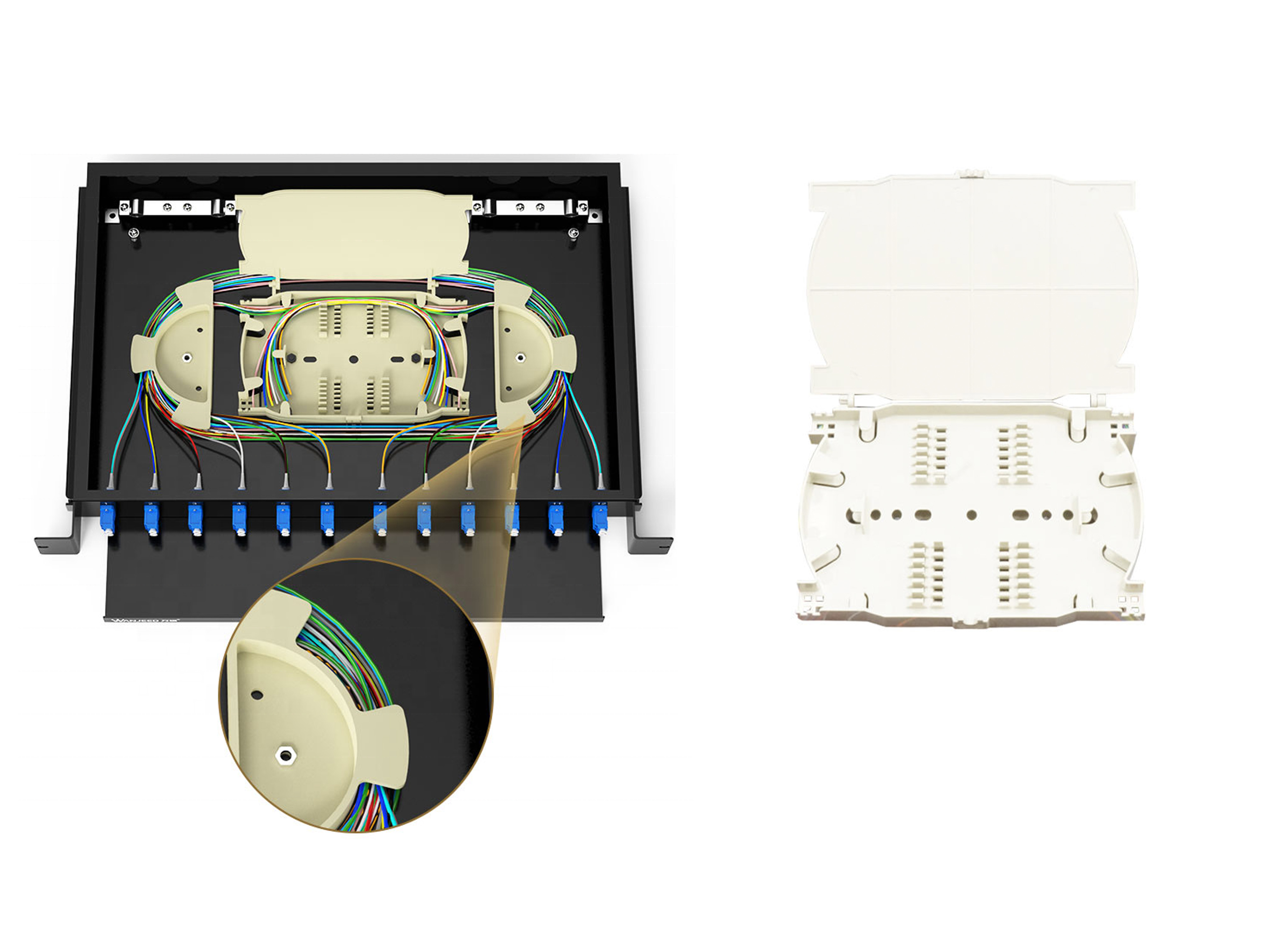

Product pictures of 96 Cores Patch Panel ODF:
Packaging of 96 Cores Patch Panel ODF:
