    Low Loss Uniboot Patch Cord LC-LC MPO-LC OM3 OM4 8F - 24F G657A1 SM MM DX 2.0/3.0

    Ask Lasest Price
    Brand Name : Begate
    Model Number : LC-LC MPO-LC SX Uniboot 2.0/3.0 Patch Cord
    Certification : CE/RoHS/ISO9001
    Price : To be negotiated
    Payment Terms : T/T,Paypal, Western Union, MoneyGram, D/A, D/P, Paypal , Cash, L/C,
    Supply Ability : 500000 Piece/Pieces per Week
    Delivery Time : Samples within 3 days, formal orders within 15 working days
    • Product Details
    • Company Profile

    Low Loss Uniboot Patch Cord LC-LC MPO-LC OM3 OM4 8F - 24F G657A1 SM MM DX 2.0/3.0

    Low Loss LC-LC MPO-LC OM3 OM4 8F 12F 24F G657A1 SM MM DX Uniboot 2.0/3.0 Patch Cord


    Products Description of Uniboot Patch Cord:

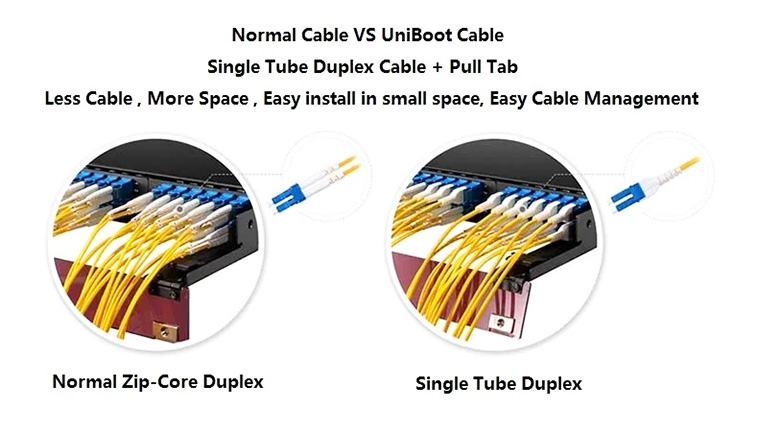

    LC Uniboot style patchcord with an integrated push/pull tab is ideal for high-density patching environments. The unique push-pull tab allows easy finger access and a secure holding fixture for patching or handling. The attractive, low-profile uniboot connector design utilizes a round 2 Multimode duplex cord to manage neater and denser cables. Low-loss connectors offer the lowest possible channel loss for multimode OM4 and OM3 OM5 applications.

    Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and terminal box. This is known as "interconnect-style cabling.


    Product Details of Uniboot Patch Cord:


    ConnectorLC,SC,FC,ST,MT-RJ,E2000,MU,MPO/MTP..Jacket OD0.9mm,2.0mm,3.00mm, or customized
    Fiber ModeSM, MMJacket ColorSingle Mode: Yellow
    OM1/OM2:Orange
    OM3:Aqua
    OM4:Aqua or Magenta
    OM5:Lemon Green
    PolishUPC /APCWavelength1310/1550nm
    Fiber TypeSimplex/DuplexJacket MaterialPVC/LSZH
    Insertion loss≤0.3dBInterchangeability≤0.2dB
    Return loss≥50dB,≥60dBVibration≤0.2dB
    Operating temperature-40~75°CStorage temperature-45~85°C
    PolarityA(Tx) to B(Rx)Fiber GradeG652D/G657A1/G657A2

    The assembly line of Uniboot Patch Cord:


    Applications of Uniboot Patch Cord:


    1. CATV, Active device termination;
    2. Telecommunication networks
    3. Metro
    4. Local Area Networks
    5. Data Centers
    6. Data processing networks
    7. Test equipment
    8. Premise installation
    9. Wide Area Networks
    10. Cross-connects
    11. Interconnects

    Features of Uniboot Patch Cord:


    1. Low insertion and back reflection loss
    2. Ferrule end surface pre-domed
    3. Good exchangeability
    4. Good durability
    5. High-temperature stability
    6. Standard: TelcordiaGR-326-CORE.

    Workshop Line of Uniboot Patch Cord:


    FAQ:


    Q: Are you a trading company or manufacturer?
    A: We are a factory


    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to the quantity


    Q: Do you provide samples? is it free or extra?
    A: Yes, we could offer the sample for free but do not pay the freight cost.


    Q: What are your terms of payment?
    A: Payment<= 1000 USD, 100% in advance. Payment>= 1000 USD, 30% T/T in advance, balance before shipment.


    Q: Do you accept OEM or ODM?
    A: Yes, we're a factory. any of your customized requirements we can do our best to help you realize them.
