Outdoor Waterproof 1x8 Fiber Optic Terminal Fiber Ftth Box FTTH Fiber Optic PC/ABS Box

Product Overview of 1x8 Fiber Optic Terminal Termination Box:

This fiber optic box terminates up to 2 fiber optic cables, offers spaces for splitters and up to8 fusions, allocates 16 SC adapters, and works under both indoor and outdoor environments. It is a perfect cost-effective solution provider in the FTTx networks.

The equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.

8 Core FTTH Distribution Box No Cutting Cable Type-(DT-FDB-8008NCC), Desigen Suitable for indoor or Outdoor, Number of 3 inlets 8 Outlet (Total:11 pieces), Max.Capacity:8 Core,(Empty Box OR With 8PCS SC/APC OR SC/UPC Adapter is optional),(With 8PCS SC/APC OR SC/UPC Pigtail is optional),(With 1x8 0.9MM Mini Type PLC SC/APC OR SC/UPC Connector is optional), Box Color: Black or White is optional, Way To installation: Wall Mounting or Add Telegraph Pole Mounting Accessories is optional.

8 Cores fiber optic access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box. The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.

Features of 1x8 Fiber Optic Terminal Termination Box​:

1. PC+ABS material used ensures the body is strong and light
2. Wetproof, anti-aging
3. Accommodates both cable glands as well as tie-wraps
   Lock provided for extra security
4. Easy installations: Ready for wall mount installation kits provided
5. Space saving: Double-layer design for easier installation and maintenance
6. The wall outlet termination box is designed with a large arc shape to ensure that the fiber optic cable placed in
7. It will not be damaged when subjected to external forces, affecting the quality of communication.
8. For home or work area (FTTD) fiber interface.
9. Connecting type: SC, LC with common model adapters.
10. Using high-quality ABS material has a certain fire resistance.
11. With a dustproof device to prevent dust from entering.
12. Scope of application 3.1 × 2.0mm drop cable or patch cable
13. Protection level up to IP55
14. The cabinet can be installed by the way of wall mounted or poled-mounted, suitable for both indoor and outdoor uses.
15. The distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
16. Cable, pigtails, and patch cords are running through their own path without disturbing each other, cassette type SC adapts or installation, easy maintenance.

Applications of 1x8 Fiber Optic Terminal Termination Box​:

1. Audio signals, network system, data, image transmission system, CATV cable series
2. The terminal box can be used as an indoor connector box
3. Can be divided into cable handover box and cable handover box.
4. They are used in the user's front-end wiring.
5. Networking of electronic terminal devices
6. For indoor optical cable
7. FTTH access network.
8. Telecommunication Networks
9. CATV Networks
10. Data communications Networks
11. Local Area Networks

Technology Specification of 1x8 Fiber Optic Terminal Termination Box:

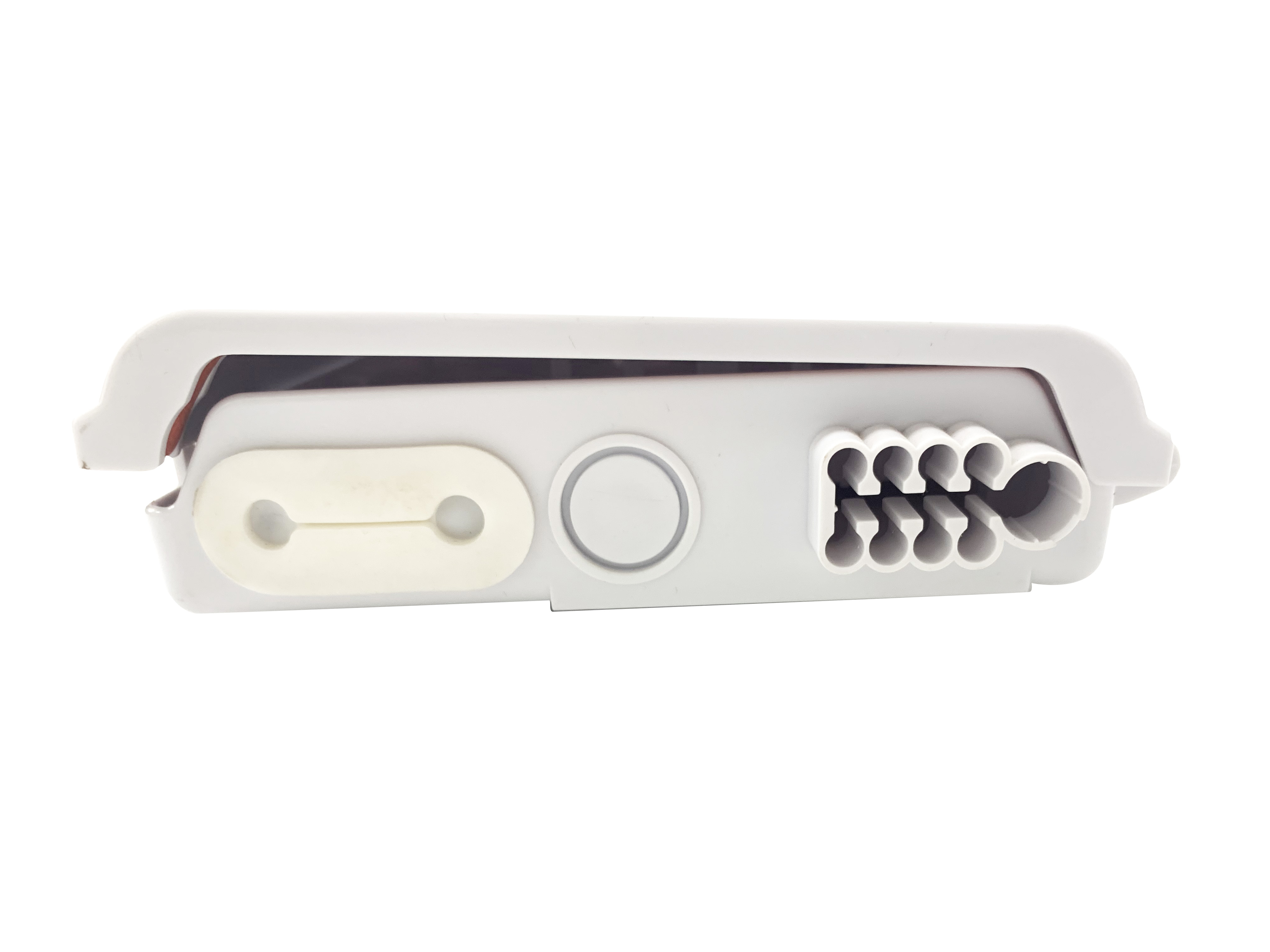

Detail of 1x8 Fiber Optic Terminal Termination Box​:

Packaging of 1x8 Fiber Optic Terminal Termination Box:
