    ODVA To SC Fiber Optic Patch Cord

    Ask Lasest Price
    Brand Name : OEM and ODM
    Model Number : ODVA To SC
    Certification : CE,ROHS,ISO9001,IEC and TIA
    Price : USD 39.99 / piece ~ USD 299.99 / piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , Cash
    Supply Ability : 3000 pieces / day
    Delivery Time : Samples within 3 days, bulk orders within 15 working days
    • Product Details
    • Company Profile

    ODVA To SC Fiber Optic Patch Cord

    Outdoor Waterproof Armored ODVA To SC Fiber Optic Patchcord For Arial Telecomunication


    Overview of ODVA Fiber Optic Patchcord


    ODVA fiber optic patch cable assemblies provides low cost ideal solution for CATV, RRH remote radio heads, FTTX harsh environment connectivity. This ODVA-LCDX, ODVA-SC and ODVA-MPO is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use.


    Features of ODVA to SC Fiber Optic Patchcord


    1. 3 series optional: LC duplex,SC simplex,and MPO.
    2. Waterproof
    3. Low insertion and high return loss.
    4. 5.0mm, 7.0mm cable optional.
    5. Wide range of operational temperature from -40 to+85°C.
    6. 100% optically tested to ensure quality performance assemblies.

    Application of ODVA TO SC Fiber Optic Patchcord


    1. FTTA,FTTH Application.
    2. 3G,4G,5G Base Station.
    3. Horizontal and Vertical Cabling.
    4. BBU,RRU,RRH,LTE

    Technical Specifiation of ODVA TO SC Fiber Optic Patchcord


    Optical Characteristics
    ItemParameter
    Insertion lossSingle modeMultimode
    Typical value≤0.15dB;Maximum≤0.30Typical value≤0.15dB;Maximum≤0.30
    Return loss≥ 60dB (APC); ≥ 50dB (UPC)≥30dB (UPC)
    Mechanical Characteristics
    TestConditions
    Endurance500 matings
    VibrationFrequency: 10 to 55Hz,Amplitude: 0.75mm
    Cable retention400N (main cable); 50N (connector part)
    Strength of coupling mechanism80N for 2 to 3mm cable
    Cable torsion15N for 2 to 3mm cable
    Fall10 drops, 1m drop height
    Static lateral load1N for 1h (main cable); 0.2N for 5min (ranch part)
    Cold-25°C, 96h duration
    Dry heat+70°C, 96h duration
    Change of temperature-25°C to +70°C, 12 cycles
    Humidity+40°C at 93%, 96h duration

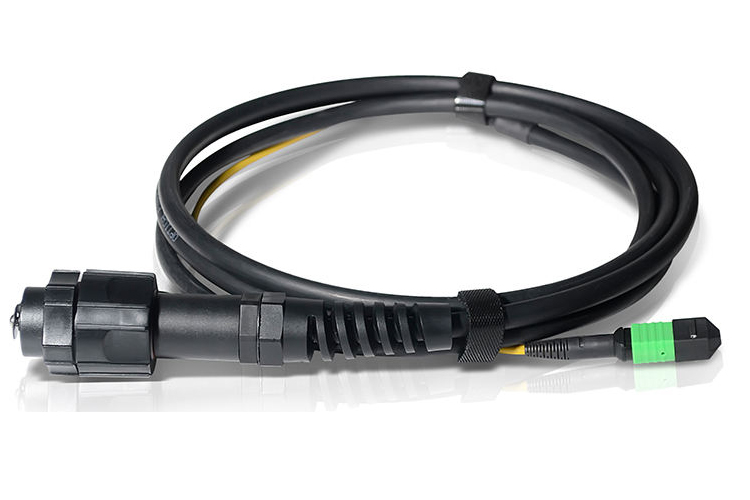

    Detailed photos of ODVA ODVA Fiber Optic Patchcord


    ODVA To Armored LC Fiber Optic Patchcord


    ODVA To SC Fiber Optic Patchcord


    ODVA To MPO Fiber Optic Patchcord

    More questions?


    Our informative and experienced representatives are ready to assist you with any questions that you might have, regarding your fiber optic network. We offer a superior selection of quality products as well as competitive pricing to help get your project completed and under budget.
    Thank you for visiting our website!
