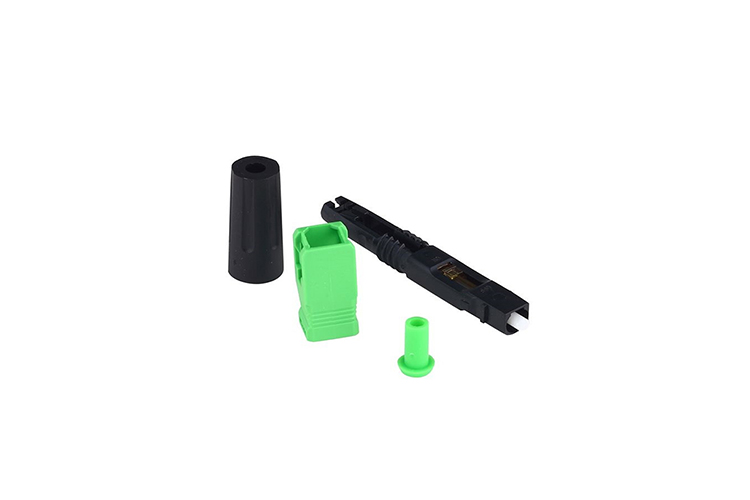

Quick Assembly Connector Fast SC APC SC UPC Optical FTTH Connector
Product Description of Quick Assembly Connector:
Fiber Fast Connector is a passive devices ,used to connect optical
fiber cable to form a continuous optical
patch.It has been widely used in fiber optic transmission,fiber
patch panel,and optical fiber test instruments
Fast fiber optic connector can provide a quick and easy termination
of fibers in the field and options are available for 900 micron
allowing the installer to terminate and make connection in minutes
at equipment and fiber patch panels. This connector system removes
any requirement for epoxy, adhesives or costly curing ovens
Fiber Fast Connector is used for field assembled optical fiber
connector ,widely used in fiber to the home (FTTH) access optical
networks,to assemble with drop cable quickly.
Features of Quick Assembly Connector:
New unique design, installation without the need to inject glue, no
grinding
Embedded structure : easy to operation
Low insertion loss, high return loss
Installation and maintain of Fiber Optical Network
Specification of Quick Assembly Connector:
Inserting Loss: No More than 0.3dB
Return Loss: No Less than 55dB
Usage:2.0*3.0*0.9mm Drop Fiber Cable
Working Temperature:-40 to 85 Celsius Degree
| Unit | LC,SC,FC,ST,MTRJ,MPO | |
| parameter | SM | MM |
| PC | UPC | APC | PC |
| Insertion Loss | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 |
| Repeatability | dB | ≤0.2 |
| Durability | Time | >10000 |
| Operating Temperature | ℃ | -40~75 |
| Storage Temperature | ℃ | -40~85 |
Packaging and shipping of fast optic connector
Customers feedback
Company information
Shenzhen begate Co., Ltd is located in longhua, Shenzhen. The
factory covers an area of 20,000 square meters, and has a complete
set of automated production and testing equipments. Begate is
specialized in manufacturing of network cables, optical fiber quick
connector, fiber optical cables, fiber optic adaptor, fiber optic
attenuator, fiber optic splitter, professional plc splitter
cassette, fiber optic patch cord, fiber optic splice closure, FTTH
series and other products of network cabling system. Our products
also covers the fiber media converter, Fiber optic cross connect
cabinet and Fiber optic splice closure, etc.
In order to meet more high end market’s needs, we imported REELEX
machine from US and got the National High-Tech Enterprise
Certification in the same year.
We have passed ISO9001-2008 and ISO14001 certification with
excellent management systems.
Why choose Begate?
1.Own factory. We can save your money(Factory-sale),
2.Strong R&D ability
3.Strictly quality control with Reliable quality(2years warranty),
4.Fast delivery(within 7days)
5.No MOQ (1piece okay)
6.Credit supports.
7.Customization(Print your logo).
8.Free sample
9.One-stop procurement of products in the telecommunication
industry can be achieved.
10.High efficient and professional sales and aftersales services,
care bout partners benefits and win-win situation.
Thank you very much for browsing our website and welcome your
inquiry. Any more questions? please feel free to contact us now.
We will serve you wholeheartedly.
