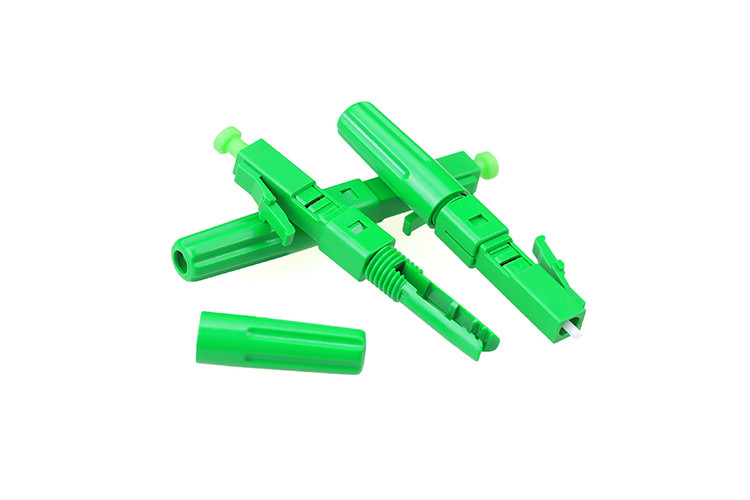

Quick Assembly Connector Fast LC APC LC UPC Optical FTTH Connector
Product Description of Quick Assembly Connector:
Easily installed
Quick assembly connector can provide quick and easy termination of
fibers in the field.
It allows the installer to terminate and make connection in minutes
at equipment and fiber patch panels.
This connector system removesany requirement for epoxy, adhesive or
costly curing ovens, with features of high installation quality,
high success rate and high reliability.
Insertion Loss: ≤0.2dB
Return Loss: ≥50dB
Fiber: 2.0 * 3.0 Bow-type drop cables for access network / 2.0 *
3.0 GJXH
Tension: 20N
Temperature Alteration Ratio: <0.5d
Features of Quick Assembly Connector:
New unique design, installation without the need to inject glue, no
grinding
Low insertion loss, high return loss
Embedded structure : easy to operation
Installation and maintain of Fiber Optical Network
Specification of Quick Assembly Connector:
Inserting Loss: No More than 0.2dB
Usage:2.0*3.0*0.9mm Drop Fiber Cable
Return Loss: No Less than 55dB
Working Temperature:-40 to 85 Celsius Degree
| Unit | LC,SC,FC,ST,MTRJ,MPO | |
| parameter | SM | MM |
| PC | UPC | APC | PC |
| Insertion Loss | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 |
| Repeatability | dB | ≤0.2 |
| Operating Temperature | ℃ | -40~75 |
| Durability | Time | >10000 |
| Storage Temperature | ℃ | -40~85 |
