SC LC UPC APC Fiber Optic Fast Connector
Product Description
Features:
1. Easy assembly process
2. Available in LC, SC, and ST connector styles
3. Available in multimode or singlemode versions
4. Factory polishing eliminates loss concerns
5. Fiber can be reseated
6. No expensive tools required
7. No epoxy required
8. Anaerobic adhesive-style, field-installable connectors
9. Most robust connection, ideal for indoor and outside plant
applications
Applications:
1. Fiber optic data transmission
2. CATV
3. Optical access network
4. Fibre to the Subscriber (FTTx) applications
5. Optical cable interconnection
6. Maintenance or emergency restoration of fiber networks
7. Repair/replacement requirements
8. Fiber optic equipment
Performance Index
| Tem | Parameter |
| Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.25dB(1310nm & 1550nm) |
| Return Loss | ≤ -45dB |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tensile Strength | >5 N |
| Tighten Strength of Coating | >10 N |
| Temperature | -40~+85°C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times
total) | IL ≤ 0.3dB |

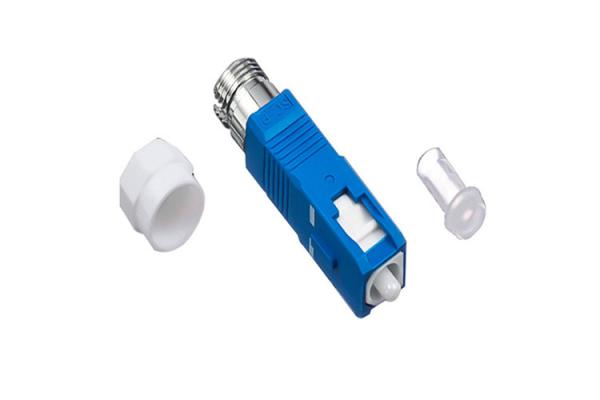

Product Picture

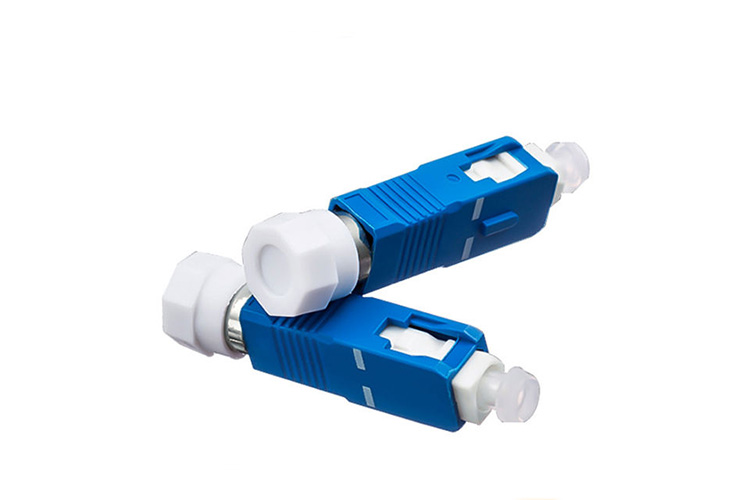

Product display
Company information
Shenzhen begate Co., Ltd is located in longhua, Shenzhen. The
factory covers an area of 20,000 square meters, and has a complete
set of automated production and testing equipments. Begate is
specialized in manufacturing of network cables, optical fiber quick
connector, fiber optical cables, fiber optic adaptor, fiber optic
attenuator, fiber optic splitter, professional plc splitter
cassette, fiber optic patch cord, fiber optic splice closure, FTTH
series and other products of network cabling system. Our products
also covers the fiber media converter, Fiber optic cross connect
cabinet and Fiber optic splice closure, etc.
In order to meet more high end market’s needs, we imported REELEX
machine from US and got the National High-Tech Enterprise
Certification in the same year.
We have passed ISO9001-2008 and ISO14001 certification with
excellent management systems.
Why choose Begate?
1.Own factory. We can save your money(Factory-sale),
2.Strong R&D ability
3.Strictly quality control with Reliable quality(2years warranty),
4.Fast delivery(within 7days)
5.No MOQ (1piece okay)
6.Credit supports.
7.Customization(Print your logo).
8.Free sample
9.One-stop procurement of products in the telecommunication
industry can be achieved.
10.High efficient and professional sales and aftersales services,
care bout partners benefits and win-win situation.
Thank you very much for browsing our website and welcome your
inquiry. Any more questions? please feel free to contact us now.
We will serve you wholeheartedly.
