    LC UPC To LC UPC Fiber Optic Adapter

    Ask Lasest Price
    Brand Name : OEM and ODM
    Model Number : LC/UPC Fiber Optic Adapter
    Certification : CE/RoHS/ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Delivery Time : Samples within 3 days, bulk orders within 12 working days
    • Product Details
    • Company Profile

    LC UPC To LC UPC Fiber Optic Adapter

    Overview


    Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.


    Features
    * Low profile -no flange design
    * Plastic body provides a light weight yet durable solution
    * Used to connect Multimode and Single mode LC duplex and simplex fiber cables
    * Bronze alignment sleeve supports Multimode applications
    * Integrated mounting clip allows for easy snap in installation

    Application


    △ FTTX, FTTH

    △ Gigabit ethernet

    △ Testing and others

    △ LAN, WAN, CATV networks

    △ Telecommunication networks

    △ Active device termination/Transceiver interface

    △ Connect Different Types of Ceramic Ferrule Bores

    △ Fiber communications, Data communication networks and processing, Industrial, Mechanical and Military.

    Product Paramenters
    Connector TypeLC-LCFiber CountDuplex
    Insertion Loss≤ 0.2 dBFiber ModeSingle Mode
    Return Loss>50 dBColorBlue
    Exchangeablility≤ 0.2 dBFammability RateUL94-V0
    Repeatability≤ 0.2 dBWorking Temperature-40~75°C
    Durability>1000 timesStorage Temperature-40~85°C

    Products Details

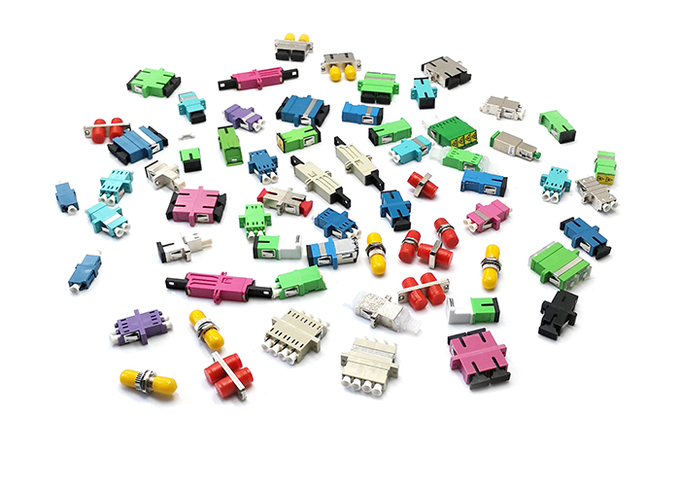

    Adapter Collections:



    Factory Workshop:


    Why choose Begate?
