    FTTX 1x64 Fiber Optic PLC Splitter

    Ask Lasest Price
    Brand Name : Begate, OEM
    Model Number : Racks Mount 1X64 SC UPC PLC Fiber Optic Splitter
    Certification : CE/RoHS/ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 80000 Piece/Pieces per Month
    Delivery Time : Samples within 3 days, bulk orders within 15 working days
    • Product Details
    • Company Profile

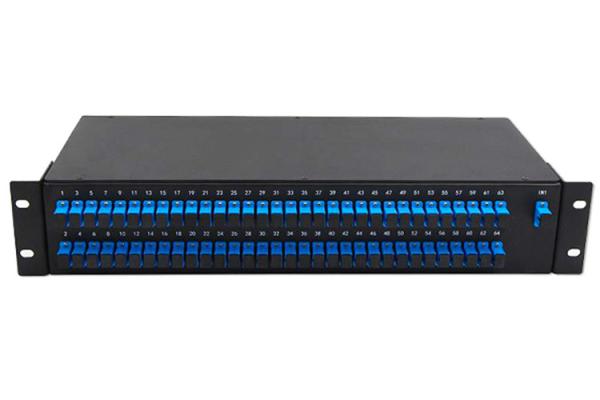

    FTTX 1x64 Fiber Optic PLC Splitter

    FTTX 1x64 Fiber Optic PLC Splitter Rack Mount With SC APC Fiber Adapters Blue


    Products details of Fiber Optic PLC Splitter:


    Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm~1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.


    Projects Parameter of Fiber Optic PLC Splitter:


    1. Operating temperature:-25℃~+40℃
    2. Storage temperature: -25℃~+55℃
    3. Relative humidity: ≤85%(+30℃)
    4. Air pressure: 70Kpa~106Kpa


    Technical Specification of Fiber Optic PLC Splitter:


    PLCPortPackage StyleFiber DiameterConnectorPigtail
    Configutation(Input/Output)(Input/Output)Length
    PLC=102=1x2ST=Steel tube, bare fiber25=250μm 90=900μmNO=None SCA=SC/APC SCU=SC/UPC LCA=LC/APC LCU=LC/UPC FCA=FC/APC FCU=FC/UPC STA=ST/APC STU=ST/UPC X=Customized15=1.5m 20=2.0m 30=3.0m

    Technical datas of Fiber Optic PLC Splitter:


    ITEM1x21x41x81x161x321x64
    MAX. Insertion Loss(dB)4.17.410.516.81720.4
    MAX. Channel Uniformity(dB)0.60.60.60.60.81
    MAX. PDL(dB)0.20.20.20.20.20.3
    Directivity(dB)≥55
    Return Loss (dB)≥55
    Storage Temperature℃-40~+85
    Operating Temperature℃-40~+85

    Features of Fiber Optic PLC Splitter:


    1. Good uniformity and low insertion loss
    2. Low Polarization Dependent Loss
    3. Excellent Environmental Stability
    4. Excellent Mechanical
    5. Stability Telecordia GR-1221 and GR-1209
    6. Components through TLC-Certified,Conform to YD1117-2001


    Applications of Fiber Optic PLC Splitter:


    1. FTTx Systems
    2. Digital, hybrid and AM-Video systems
    3.LAN,WAN and Metro Networks
    4.CATV systems
    5.Other applications in fiber optic systems

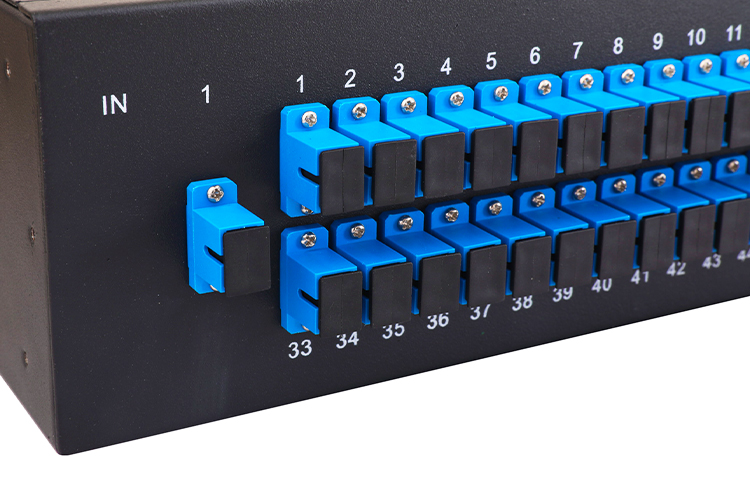

    Detail picture:


    Question: How long is shipping take typically?

    Reply: The delivery time depends on the goods quantities. If light weight, by express (DHL, FEDEX, TNT, UPS, Special line) will take about 10-15days, if large quantities with big volume, and goods are not in urgently needed, by ocean transportation will be more cost effective, it will take around 30-60days.


    Factory Workshop:


    FAQ:


    Q1: Are you a manufacturer?
    A: Yes, we are a manufacturer who has 3 factories and welcome to visit!

    Q2: What is your MOQ?
    A: We are the factory. No MOQ, One piece is available.

    Q3:Can you provide the OEM service?
    A: Sure, we have the complete production line, we could do the production as your request.

    Q4. Can I have a sample order for this product?
    A: Yes, for patchcord, FREE SAMPLE is avaible to test and check quality. Mixed samples are acceptable.

    Q5: How long is your delivery time?
    A: Generally it is 2-5days if the goods are in stock. or it is 7-15 days if the goods are out of stock. The lead time mainly depends on quantity.

    Q6: Can I negotiate the prices?
    A:Yes, special discounts are available. The more quantities, the cheaper prices.

    Q7: How much will the shipping charges be?
    A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as per you requested.Any more questions upon our products, and our company? please feel free to contact us at any time.
