Outdoor Armored OM4 2core LC UPC LSZH Fiber Optic Patch Cable
Featurs of Armored Fiber optic patch cable
- Flexibility with small bending radius and excellent cable routing
properties.
- Suitable for riser, duct, horizontal and vertical cabling.
- Available in G652D, G657A, OM1, OM2, OM3 and OM4 fiber types.
- Thick wall outer jacket and E-glass gives more excellent tensile
strength, mechanical, rodent, ultraviolet and environmental
protection.
- Drop cable patch cord will be produced to different kind of
connectors and different length according to the construction need.
- With high tensile strength armored tube for protecting Φ2mm outdoor
branch cable, custom lengths.
- End-face geometry and quality superior than IEC and Telcordia
standards.
- The material in the jumpel cable are all-weather and UV-resistant.
- Mechanical performance: IEC 61754-20 standard. 8.RoHS and REACH
materials compliant.
Application of Armored Fiber Optic patch cable
- Outdoor harsh environment
- FTTA
- FTTH
- Communication system
Technical specification of Armored Fiber Optic patch cable
| Items | Description |
| Connector Type | LC/MU/SC/FC/ST/Others |
| Polishing Type | UPC/APC 8°/APC 9° |
| Insertion Loss (dB) | ≤0.20 |
| Random mating loss (dB) | Max. 0.12dB mean, Max 0.25dB for 97% of samples |
| Return Loss (dB) | UPC ≥ 50, APC ≥ 65 |
| Wavelength (nm) | 1310/1550 |
| Installation Temperature (°C) | -20 to 70 |
| Storage Temperature (°C) | -40 to +85 |

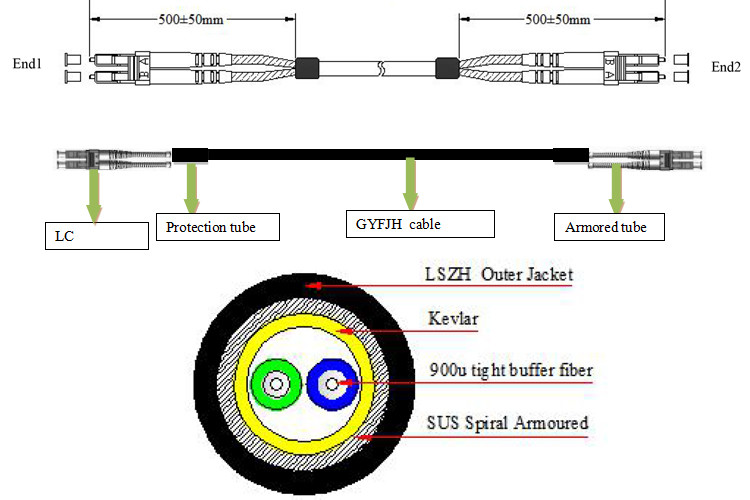

Structure of Armored Fiber Optic patch cable
| Cable count | Out Sheath Diameter(mm) | Weight(kg) | Minimum allowable
Tensile Strength
(N) | Minimum allowable
Crush Load
(N/100mm) | Storage temperature |
| Short term | Long term | Short term | Long term |
| 2 | 5.0±0.2 | 45 | 400 | 800 | 2000 | 3000 | -20℃ + 70℃ |

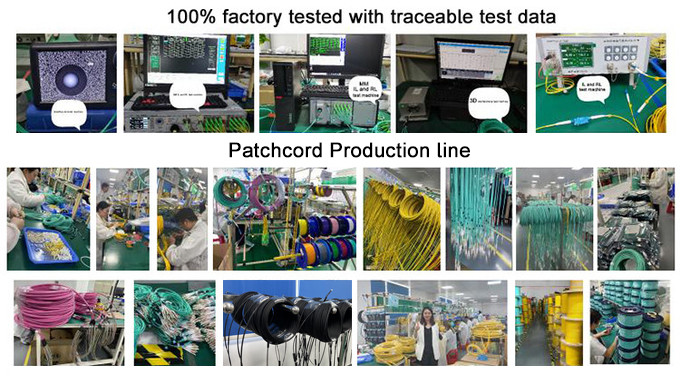

Assembling line of Fiber Optic patch cable
We can product 2Cores Singlemode and Multimode DLC/DLC outdoor
fiber patch cables,diameter of outer cable is about 5.0mm and
7.0mm,outer jacket is LSZH Materials.And there is Armored tube to
protect the cable more strength .This drop cable containing two
simplex 2.0mm sub unit cables with waterblocking E-glass strength
members, and then with an overall 7.0mm LSZH outdoor jacket. The
sub unit cable consist of a 0.9mm tight buffer optical fiber in a
LSZH inner jacket with aramid yarn. It has small diameter, light
weight and thick wall jacket protection, giving it versatile
applications. Duplex armored GYFJH type drop cable patch cord is
widely used for building access, cabling construction, FTTx
networks and Base station, suitable for fiber optic networks far
transmission in indoor/outdoor harsh environment.
Ordering information of Fiber Optic patch cable
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4,
SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores,
24cores, 36cores, 48cores...
5) Cable Diameter: φ7.0mm, φ5.0mm, φ3.0mm,φ2.0mm, φ0.9mm ....and
customize
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
