Product Description
LC/UPC-SC/UPC SM SX 2.0mm LSZH Optical Fiber Patch Cord
FTTH Optical Patchcord Cable, with Connector pre-terminated at each
end of the cable to make connection. The operator could directly
plug the cable to the adapter without splicing in field, which will
decrease the loss of the optical distribution network, as well as
decrease the operation time in the subscriber end.
Bwinners provides a high precise FTTH Optical Patchcord Cable for
the construction of optical network. Bwinners offer user a wide
choice of patchcord's connectors, including ST, FC, SC, LC and etc.
with PC, UPC or APC polishing. FTTH Optical Patchcord Cable is
composed of high-grade connectors and the ferrule is made of
zirconia. Customer can order the common type patchcord we offered
as well as the special type customized by customer for special
application.
Specification of Optical Fiber Patch Cord
| Name | SM SX LC/UPC-SC/UPC 2.0mm LSZH Jacket Optic Fiber Patch Cord |
| Connector | SC, LC, ST, FC, E2000, MTRJ, MPO |
| Polishing | PC (SM) | UPC (SM) | APC (SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Wavelength | 1310/1550nm |
| Insertion Loss (dB) | ≤0.2 (max≤0.3) |
| Repeatability (dB) | ≤0.1 |
| Durability(1/Matings) | ≥500 |
| Operation Temperature (°C) | -25~+70°C |
| Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 |
| Fiber Grade | G652B, G652D, G655, G657A1, G657A2, 50/125, 62.5/125,
OM3(50/125-150),OM4(50/125-300) |
| Fiber Mode | 9/125um, 50/125um,62.5/125um,etc |
| Cable Diameter | 0.9mm 2.0mm, 3.0mm etc |
| Cable Jacket | PVC, LSZH, OFNR |
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores, etc |
Features
Good durability
100% connectors tested
Good Repeat and exchangeability: >1000 times
Delivery 100% passed products
High-Temperature stability
Low insertion loss and back reflection loss
High Return Loss
Superior Quality Standard PC/UPC/APC Polishing
Comply with Standard: Telcordia GR-326-CORE, TIA/EIA, and IEC
The patch cord can be customized according to customer's specific
requirements
Applications
Fiber Patch cords are used for connections to CATV (Cable
Television), telecommunication networks, computer fiber networks,
and fiber test equipment. Applications include communication rooms,
FTTH (Fiber to The Home), LAN (Local Area Network), FOS (fiber
optic sensor), Fiber Optic Communication System, Optical fiber
connected and transmitted equipment, Defense combat readiness, etc.
CATV network
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX networks
Free samples are available for your testing.
Product Details
The E2000 fiber patch cord can meet the needs of high-density
wiring in the data center to a certain extent, and has the
advantages of low insertion loss, high return loss, and strong

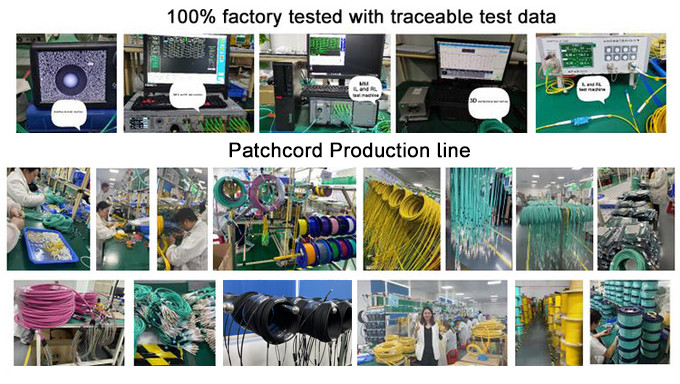

interchangeability. All E2000 fiber patch cable made by Begate have
undergone strict end-face cleaning tests, 3D interferometer tests
and loss tests, and the quality is guaranteed. In addition, in the
test center, whether it is a professional tester or advanced
testing equipment, every detail is strictly checked, and Begate
strives to provide the highest quality fiber optic cable.
Optional fiber patch cord connectors
Company information
Shenzhen begate Co., Ltd is located in longhua, Shenzhen. The
factory covers an area of 20,000 square meters, and has a complete
set of automated production and testing equipments. Begate is
specialized in manufacturing of network cables, optical fiber quick
connector, fiber optical cables, fiber optic adaptor, fiber optic
attenuator, fiber optic splitter, professional plc splitter
cassette, fiber optic patch cord, fiber optic splice closure, FTTH
series and other products of network cabling system. Our products
also covers the fiber media converter, Fiber optic cross connect
cabinet and Fiber optic splice closure, etc.
In order to meet more high end market’s needs, we imported REELEX
machine from US and got the National High-Tech Enterprise
Certification in the same year.
We have passed ISO9001-2008 and ISO14001 certification with
excellent management systems.
Ordering information
- 1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4,
SMA
- 2) Ferrule End-face: PC, UPC,APC
- 3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
- 4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores,
24cores, 36cores, 48cores...
- 5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
- 6) Cable Length: 1, 2, 3 meter or customized
- 7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
