OM1 Fiber Optic Patch Cord FC To FC Duplex Multi Mode With Network
System
Product Description of Fiber Optic Patch Cords:
Fiber patch cords are used to make patch cords from the device to
the fiber optic cabling link. There is a thick protective
layer,which is generally used in the connection between the optical
transceiver and the terminal box, and is applied in some fields
such as a fiber-optic communication system, a fiber access network,
an optical fiber data transmission, and a local area network.
1. FC type optical fiber patch cord: The external reinforcement
method is a metal sleeve, and the fastening method is a turnbuckle.
Generally used on the ODF side (the most used on the patch panel)
2. SC type fiber patch cord: The connector that connects the GBIC
optical module. Its outer casing is rectangular, and the
fastening method is plug-and-pull type without rotating. (most used
on router switches)
3. ST type fiber patch cord: commonly used in fiber distribution
frame, the outer casing is round and the fastening method is screw
buckle. (For 10Base-F connections, the connector is usually ST
type. Commonly used for fiber distribution frames)
4. LC Fiber Patch Cable: A connector that connects to an SFP
module. It is made with a convenient modular jack (RJ) latch
mechanism. (used by routers).
Featurs of Fiber Optic patch Cords:
- Excellent electrical transmission performance
- Provides rich margin support for system links
- Flexibility with small bending radius and excellent cable routing
properties
- The optical signal transmission is uniform
- the environment is stable
- requirements of different wavelengths and it can meet the
transmission
- Suitable for riser, duct, horizontal and vertical cabling.
- Variou fiber cable length, jacket color, connector type and label,
etc.
- Ferrule end surface pre-domed
- Good exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior Quality Standard PC/UPC/APC Polishing
- Excellent mechanical endurance
- Low insertion loss,high return loss
- Good durability
- and it can meet the transmission
Applications of Fiber Optic patch Cords:
- Medical
- Optical Fiber Sensor
- Long haul trunk,metro and access system
- Outdoor harsh environment
- Optical Fiber Test Equipment
- Long haul trunk,metro and access system
- Telecommunications
- CATV, LAN, MAN, WAN, Test &Measurement
- Optical Fiber Communication System
- Communication system
- Military industry
Technical specification of Fiber Optic patch Cords:
A.
| Model | SM | MM |
| Connector A:MPO/MTP |
| Connector Fiber Count | 8,12,24,48 Core |
| Polish | PC,APC | PC |
| Insertion Loss | Standard | ≤0.70dB | ≤0.50dB |
| Elite Low Loss | ≤0.35dB | ≤0.30dB |
| Return Loss | PC≥50dB,APC≥60dB | ≥30dB |
| Durability(500 Matings) | ≤0.2dB |
| Test Wavelength | 1310/1550nm | 850/1300nm |
| Connector B:LC,LC Uniboot,SC,FC,ST |
| Polish | PC,APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Return Loss | PC≥50dB,APC≥60dB | ≥35dB |
| Durability(500 Matings) | ≤0.2dB |
| Test Wavelength | 1310/1550nm | 850/1300nm |
B.
| Product Category | Patch Cord |
| Product Type | Multi Mode |
| Connector Type | FC/SC/LC, ST/MU ,MTRJ Custom |
| Fiber Type | Single-Mode 9/125um G652D |
| Single-Mode 9/125um G657A |
| Multi-Mode-OM3 |
| Multi-Mode-OM4 Custom |
| Fiber Diameter | 9.0mm/2.0mm/3.0mm/Custom |
| Cable Length | 0.5M/1M/2M/Custom |
| Cable Type | Simplex/Duplex/Water-proof Break-out/Custom |
| Cable Jacket | LSZH/ PVC /OFNR |

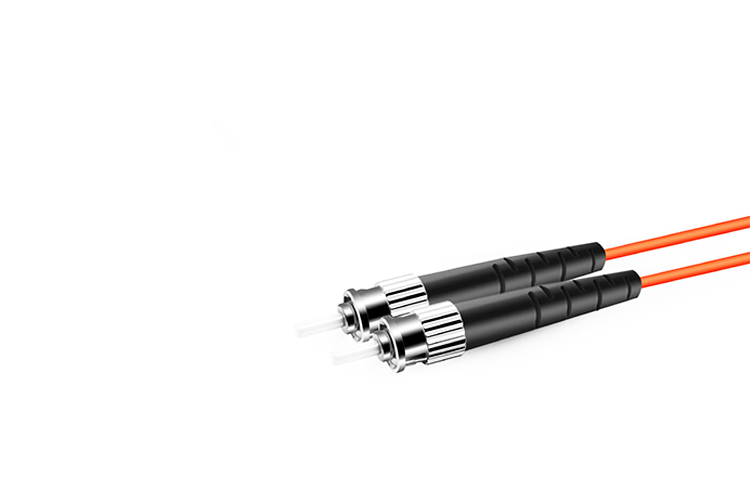

Detail of Fiber Optic Patch Cords:
Other Types:
According the fiber type, we can provide all series of Patch Cord.
SM (G652D G657A1 G657A2 G657B3 G655) MM (OM1 OM2 OM3 OM4 OM5)
FAQ:
Q1. Could you do design for us?
Yes, we provide customized service and can do artworks including
printing, logo etc. for you.
Q2. What's the payment terms?
TT, WesternUnion, Escrow(secure payment), Trade assurance, Cash,
etc.
Q3. Can I use my own LOGO and design on products?
YES, OEM is welcomed.
Q4. Could you offer samples?
Yes, samples are accepted.You need place sample order to us, and we
will reduce from bulk order.
Q5. What's the delivery time for sample order?
Normally about 3days after confirmation.
Q6. What's the delivery time for bulk order?
Normally 5-10 days depends on products and order quantities.
Q7. How to send the goods?
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo
by air & sea.
