Patch Cords are used to provide optical connection for fiber optic
electronics. The use of the patch cord provides a quick and easy
method for routing fiber patches in data centers, head-ends,
cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path
connecting the incoming fibers to the electronic equipment and
providing patching within the fiber paths.
The 9/125μm single mode fiber patch cord meets RoHS compliant, and
all cables are 100% optically tested for insertion loss to ensure
high quality, it is very cost-effective for network cabling.
Features
Low Insertion Loss, High Return Loss
Good Repeatability and Interchangeability
Applications
Long-haul, Metro and Access System
Fiber CATV and Fiber Network System
Specifications
| Parameters | |

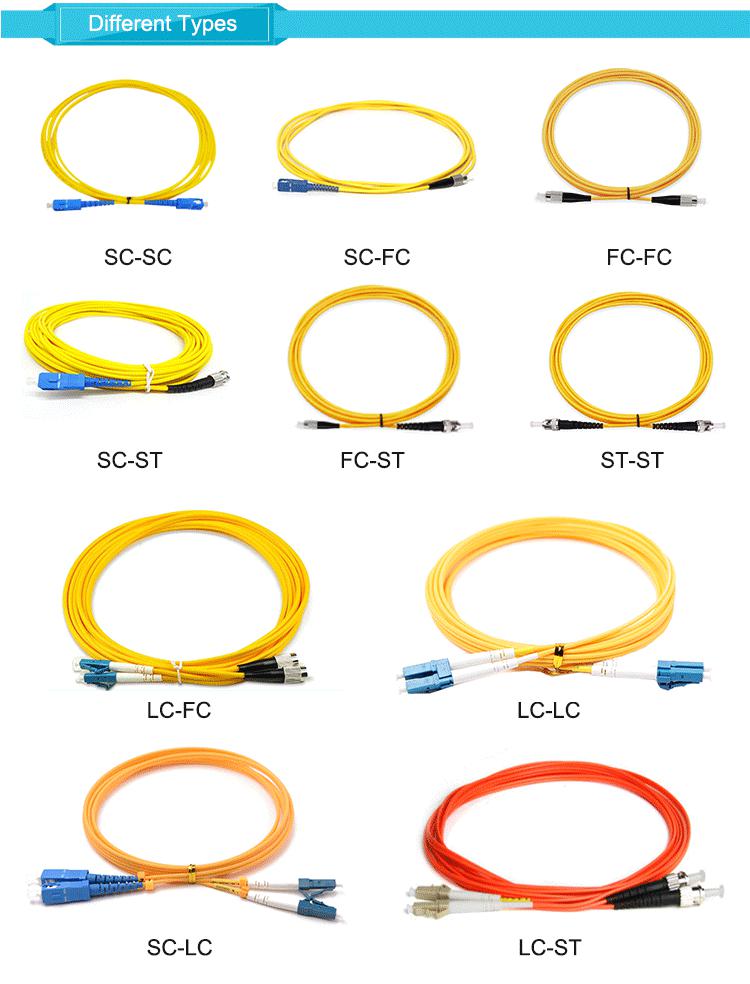

| Connector Type | SC/UPC-SC/UPC |
| Fiber Type | Mult Mode | Single Mode |
| Insertion Loss | Max.≤0.2dB | Max.≤0.3 |
| Return Loss | ≥36dB(no APC connector) | PC | UPC | APC |
| ≥45dB | ≥50dB | ≥60dB |
| Interchangeability | ≤0.2dB |
| Connection Durability | ≥1000 times |
| Operating/Storage Temperature | -40~80ºC |
| 50/125µm |
| Length | 1m, 2m, 3m,Customized |
| Cover materials | PVC/LSZH/OFNP |
| single-mode |
| Wavelength | 1310nm/1490nm/1550nm |
Packing & Delivery
Begate fiber patchcord assembly line
Begate provides a full set of fiber optic patch cords customized
services, such as fiber connector, length, color, fiber grade,
specifications, materials, packaging, etc. All patch cords are
functionally tested before shipping, ensure that the end face is
spotless, insertion loss and return loss are in line with
international telecommunication standards.
Company information
Shenzhen begate Co., Ltd is located in longhua, Shenzhen. The
factory covers an area of 20,000 square meters, and has a complete
set of automated production and testing equipments. Begate is
specialized in manufacturing of network cables, optical fiber quick
connector, fiber optical cables, fiber optic adaptor, fiber optic
attenuator, fiber optic splitter, professional plc splitter
cassette, fiber optic patch cord, fiber optic splice closure, FTTH
series and other products of network cabling system. Our products
also covers the fiber media converter, Fiber optic cross connect
cabinet and Fiber optic splice closure, etc.
In order to meet more high end market’s needs, we imported REELEX
machine from US and got the National High-Tech Enterprise
Certification in the same year.
We have passed ISO9001-2008 and ISO14001 certification with
excellent management systems.
Every cooperation is a kind of trust, Begates cares about the
issues that our customers care about.
While ensuring product quality, we provide customers with safe
packaging, so that the goods can be delivered to customers in good
condition.
Question: How long is shipping take typically?
Reply: The delivery time depends on the goods quantities. If light
weight, by express (DHL, FEDEX, TNT, UPS, Special line) will take
about 10-15days, if large quantities with big volume, and goods are
not in urgently needed, by ocean transportation will be more cost
effective, it will take around 30-60days.
Thank you very much for browsing our website and welcome your
inquiry at any time. Any more questions upon our products, and our
company? please feel free to contact us now. We will serve you
wholeheartedly.
