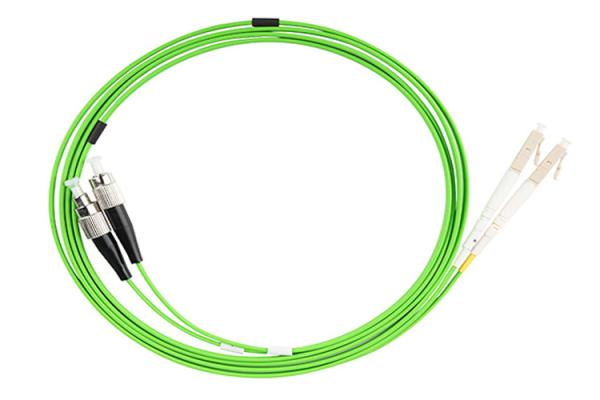

OM5 Customized ST To LC UPC Fiber Optic Patch Cord With Green Color
FTTH
Product Description of Fiber Optic Patch Cords:
Fiber Optic Patch cords are ultra reliable components featuring low
insertion loss and return loss. They come with your choice of
simplex or duplex cable configuration .Extensive range of fiber
patch cables are terminated with state-of-the-art connectors and
available in any combination of ST, SC, LC ,FC and MTRJ with PC,
UPC or APC polish types to meet your standard or custom
configurations.
Fiber Patch Cord is a fiber optic cable capped at either end with
connectors that allow it to be rapidly and conveniently connected
to CATV, an optical switch, or other telecommunication equipment.
Having a thick layer of protection, it is used to connect the
optical transmitter, receiver, and the terminal box. This is known
as "interconnect-style cabling".Sorting it by different connector
type, it has LC/ SC/ ST/ FC/ MU/ DIN/E2000.
Patch cord also come in hybrid varieties with 2 different connector
on the 2 ends. Sorting it by different ceramic ferrule type, it has
PC, UPC, APC.
Sorting it by different fiber type, it has simplex (G652D, G657A2,
G657A1, G652B ), dulplex and multiplex (OM1,OM2,OM3,OM4,OM5),
For the Fiber Patch Cables, they are widely be used in Telecom,
4G/5G, Intelligent building, intelligent city, data center, FTTA,
FTTH and etc.
Featurs of Fiber Optic patch Cords:
- Variou fiber cable length, jacket color, connector type and label,
etc.
- Ferrule end surface pre-domed
- Good exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior Quality Standard PC/UPC/APC Polishing
- The optical signal transmission is uniform
- Excellent mechanical endurance
- Low insertion loss,high return loss
- Good durability
- the environment is stable
- requirements of different wavelengths
- and it can meet the transmission
Applications of Fiber Optic patch Cords:
- Long haul trunk,metro and access system
- Telecommunications
- CATV, LAN, MAN, WAN, Test &Measurement
- Optical Fiber Communication System
- Communication system
- Military industry
- Medical
- Optical Fiber Sensor
- Long haul trunk,metro and access system
- Outdoor harsh environment
- Optical Fiber Test Equipment
Technical specification of Fiber Optic patch Cords:
A.
| Item | OM5 fiber optic patch cord |
| Model | LC UPC to ST |
| Sample Lead Time | Within 3 days |
| OEM,ODM | Available |
| Certificates | CE, RoHS, Fluke test passed |
| Packaging | PE bag/ Blister bag/ Carton box etc |
B.
| Model | SM | MM |
| Connector A:MPO/MTP |
| Connector Fiber Count | 8,12,24,48 Core |
| Polish | PC,APC | PC |
| Insertion Loss | Standard | ≤0.70dB | ≤0.50dB |
| Elite Low Loss | ≤0.35dB | ≤0.30dB |
| Return Loss | PC≥50dB,APC≥60dB | ≥30dB |
| Durability(500 Matings) | ≤0.2dB |
| Test Wavelength | 1310/1550nm | 850/1300nm |
| Connector B:LC,LC Uniboot,SC,FC,ST |
| Polish | PC,APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Return Loss | PC≥50dB,APC≥60dB | ≥35dB |
| Durability(500 Matings) | ≤0.2dB |
| Test Wavelength | 1310/1550nm | 850/1300nm |
Detail of Fiber Optic Patch Cords:
Packaging:
According the fiber type, we can provide all series of Patch Cord.
SM (G652D G657A1 G657A2 G657B3 G655) MM (OM1 OM2 OM3 OM4 OM5)
FAQ:
Q1. Could you offer samples?
Yes, samples are accepted.You need place sample order to us, and we
will reduce from bulk order.
Q2. What's the delivery time for sample order?
Normally about 3days after confirmation.
Q3. What's the delivery time for bulk order?
Normally 5-10 days depends on products and order quantities.
Q4. Could you do design for us?
Yes, we provide customized service and can do artworks including
printing, logo etc. for you.
Q5. What's the payment terms?
TT, WesternUnion, Escrow(secure payment), Trade assurance, Cash,
etc.
Q6. Can I use my own LOGO and design on products?
YES, OEM is welcomed.
Q7. How to send the goods?
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo
by air & sea.
