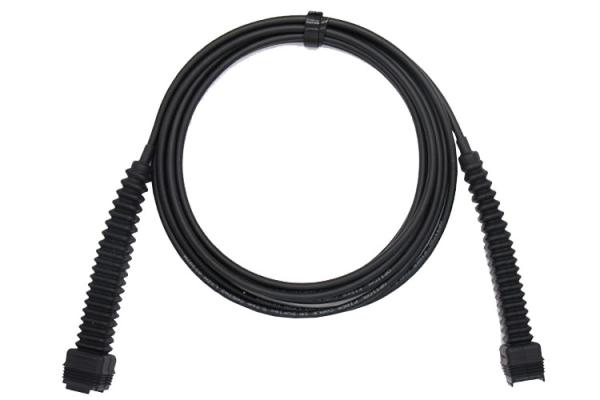

Fiber Optic Patch Cords Waterproof Outdoor SM MM Duplex For 5G Base
Station
Product Overview of Fiber OPtic Patch Cord:
PDLC Optical Cable Assembly Waterproof Outdoor Protected Cable is
standard size for Duplex LC Connectors, and the outer housing with
metal protective device. The connecting is safe and reliable. Also
have the functions of waterproof, dustproof. This patch cords
widely used in FTTA, Base station, and the outdoor waterproof
condition.
LC/UPC to LC/UPC outdoor waterproof fiber jumper Commonly used in
some Ericsson Remote Radio Heads, the shell encloses duplex LC
connectors. Plugs directly into SFP at panel of RRH. FullAXS is a
sealing system for optical and electrical interfaces which mates
directly into the SFP modules through
Features of Outdoor LC Armoured Patch Cord:
- Standard Duplex LC connector, well connected with standard LC
adaptor
- Available Single mode and Multimode
- IP67 protection, salt-mist proof, humidity proof, dust proof
- Low insertion/return loss, steady optical transmitting.
- Light weight, waterproof, dustproof, moisture proof, Metal hard
housing.
- Outdoor Armored Cable,9/125,LC/UPC-LC/UPC,Duplex,Singlemode
- Cost effective solution for in house termination
- Multimode and singlemode
- Plug has tolerance free design, fully free floating in Z-axis
- IP water immersion and dust protection for harsh environment
- Chemical resistance
- No Cable buckling at any time during or after installation
- Price-Competitive
- Low Insertion Loss & PDL
- Factory-terminated and Tested
- Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
- Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
- Polishing Options: PC/UPC/APC
- Feature Connector with Ceramic Ferrules
- Great flexibility and durability with the a metal sheathing housed
in a robust outer jacket over the glass fiber
Applications of Outdoor LC Armoured Patch Cord:
- Widely used in FTTA & FTTH
- Used for 3G 4G 5G base station
- BBU, RRU, RRH, LTE
- Fiber optic communications in harsh outdoor environments.
- Outdoor communications equipment connection.
- Waterproof fiber equipment SC port.
- Remote wireless base station.
Technical specifications of Outdoor LC Armoured Patch Cord:
1.
| Item | Data |
| Fiber Count | 2 core |
| Out Diameter | 4.8±0.2mm |
| Fiber | OS2,OM1,OM2,OM3,OM4 |
| Tension Member | Aramid Kevlar, Armoured Tube |
| Max. Attenuation | SM:≤0.4dB/km at 1310nm,≤0.25dB/km at 1550nm |
| MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm |
| Tensile Resistance | 500N(no breakage) |
| (Short Term) |
| Crush Resistance | 1000N/100mm |
| (Short Term/Long Term) |
| Inflaming Retarding | IEC 60332-3-4 |
2.
| Item | LC (SC/FC/ST optional) |
| Cable type: | duplex LSZH (simplex/PVC/PE optional) |
| Cable jacket OD(mm) | 3.0mm ( other optional, depend on fiber cable) |
| Cable length: | 100M (10M......200M optional) |
| Mode | SM (singlemode) |
| Fiber type | G675A2 (G652D G657A1 optional ) |
| Cable color | Black |
| Operating wavelength(nm) | 1310, 1510 |
|
| Fiber diameter(um) | 9/125 |
| Endface type | PC | UPC | APC |
| Typical Insertion Loss(dB) | ≤0.3 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 |
| Exchangeability | ≤0.2 |
| Vibration | ≤0.2 |
| Type | LC/UPC-LC/UPC SM DX G657A2 LSZH 3.0mm |
| Color | Black |
| Length | 100M |
| Package | 1pc/Carton box |
Detail of Outdoor LC Armoured Patch Cord:
Packaging:
FAQ
1. How can I get your catalogue and price list?
Please let us know your email or contact(WhatsApp/WeChat) us from
website directly for our catalogue and price list.
2. What's your product's advantages?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,
assemble, packing and shipping.
D. Good after sale service. Professional online technical support
can be provided. Moreover, if any problem of the goods, we will
help to solve the problem or provide replacement of the goods.
3. How much will the shipping charges be?
It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
4. What if there is qulaity problem when we get the goods?
If there is quality problem when you unpackage the goods, you can
take picture for our reference. Our QC department will check the
problem and give best solutions to you.
5. What are your delivery time?
It depends order quantities. Usually, we can deliver goods within
3-5 working days for small orders, for more QTY order, let's
confirm when you place offical order.
6. Do you accept OEM/ODM?
We support OEM/ODM service: Please don't hesitate to tell us your
ideas. Customization(Print your logo).
