Name: LC UPC 12 Core MPO MTP Cable OM3 Mulit Mode Network Fiber Optical Patch Cord
Brand: Begate，or Custom
Price: 1 USD

LC UPC 12 Core MPO MTP Cable OM3 Mulit Mode Network Fiber Optical Patch Cord

Ask Lasest Price

Brand Name :

Begate，or Custom

Model Number :

MPO MTP Cable Fiber Optical Patch Cord OM3

Certification :

CE/RoHS/ISO9001

Price :

Negotiable

Payment Terms :

T/T, Western Union, L/C, MoneyGram, D/A, D/P, Paypal , Cash

Supply Ability :

3000 pieces / day

Delivery Time :

Samples within 3 days, bulk orders within 12 working days

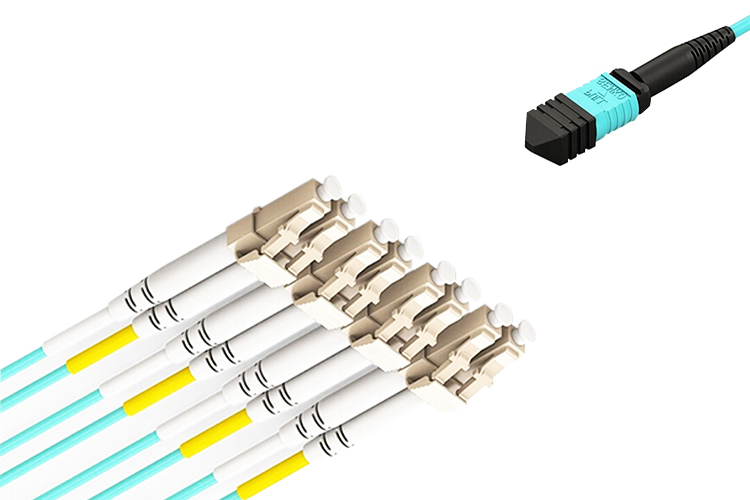

LC UPC 12 Core MPO MTP Cable OM3 Mulit Mode Network Fiber Optical Patch Cord

LC UPC 12core MPO MTP Cable Fiber Optical Patch Cord OM3 Mulit Mode Network

Product Description of MPO MTP Cable:

MPO MTP Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center.

1-24 cores Special tube filling compound ensure a critical protection of fiber; special sesigned compact structure is good at preventing loose tubes from shrinkong;FRP used as the central strength member;Water-blocking tape enhancing moisture-proof.

Features of MPO MTP Cable:

4 fiber, 6 fiber, 8 fiber 12 fiber or 24 fiber is available
10G fiber or LSZH cable is available
Excellent changeability and repeatability
Tensile strength: 10NPC/UPC/APC polishing
Fanout Length: 0.5M or 1M
Compliance with Telcordia GR-1435-Core Compliant
US Conec MTP/Senko MTP/OPTICO MPO connectors are available
High quality ferrule and accurate alignment by PIN and PIN hole
Low insertion loss and high return loss
High interchangeability and durability
MPO fiber optic patch cord comes in many types and design blueprint can be provided quickly.
Compliant with Telcordia GR-326-CORE, IEC and RoHS standards
100% 3D tested/End surface tested/Loss tested/Polarization before delivery
MTP is optional.

Application of MPO MTP Cable:

Wiring in communication base station and distribution case
Production and testing of optical devices
Telecomunication Infrastructures
LANs and WANs
Optical fiber communication system, CATV and telecommunication network
10G to 40G , 25G to 100G migration
FTTx
Connection of indoor to outdoor optical cable wiring equipment
For internal connection applications of optical transceivers, 40G/100G QSFP, QSFP+ and other optical transceivers.
Data Centre Infrastructures
Wiring of local area network between different enterprise buildings
Connection of optical links in optical active devices
Optical fiber to the building (FTTB) application;

Advantages of MPO MTP Cable:

Support 12 to 72 core or even 96 core fiber connections.
Easy management, high reliability, few fault points, fast wiring;
Small size, the volume is smaller than the SC connector;
High density, precise geometric design

Technical Specificaitons of MPO MTP Cable:

Connector Fiber Count	8,12,24,32,48 Core
Polish		PC,APC	PC
Insertion Loss	Standard	≤0.70dB	≤0.50dB
	Elite Low Loss	≤0.35dB	≤0.30dB
Return Loss		PC≥50dB,APC≥60dB	≥30dB
Connector B:LC,LC Uniboot,SC,FC,ST
Polish		PC,APC	PC
Insertion Loss		≤0.2dB	≤0.2dB
Return Loss		PC≥50dB,APC≥60dB	≥35dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm

Type A	MPO MTP(Female)	Type B	MPO MTP(Female)
Fiber Type	OM4 50/125μm	Wave Length	850/1300nm
400G Transmission Distance	100m@850nm	Fiber Type	Corning ClearCurve
Polish Type	APC-APC	minimum bend radius	7.5mm
Insertion Loss	≤0.35dB(Typical Value 0.15dB)	Return LossL	≥20dB
Attenuation @850nm	≤2.3dB/km	Attenuation@1300nm	≤0.6dB/km
Diameter of outer sheath	3.0 mm	Outer sheath material	Plenum (OFNP)
Installation tensile load	100N	Long term tensile load	50N
Operating Temperature	-10°C ~ +70°C	Operating Temperature	-40°C~ +85°C

Production Process of MPO MTP Cable:

Other Type of MPO MTP Cable:

FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantit

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q: Do you accept OEM or ODM?
A: Yes,we're factory. any your customized requirements we can do our best to help you realize.
