Name: 12 Core MM OM4 Fiber Cable Male Female 5M Single 40mm 50mm 30mm Polarity B
Brand: Begate， OEM or ODM
Price: 1 USD

12 Core MM OM4 Fiber Cable Male Female 5M Single 4.0mm 5.0mm 3.0mm Polarity B

Ask Lasest Price

Brand Name :

Begate， OEM or ODM

Model Number :

MPO MTP Cable 5.0mm Custom Length Multimode

Certification :

CE/RoHS/ISO9001

Price :

To be negotiated

Payment Terms :

T/T, Western Union, L/C, MoneyGram, D/A, D/P, Paypal , Cash

Supply Ability :

3000 pieces / day

Delivery Time :

Samples within 3 days, bulk orders within 12 working days

12 Core MM OM4 Fiber Cable Male Female 5M Single 4.0mm 5.0mm 3.0mm Polarity B

MM OM4 12 Core MPO MTP Cbale Male Female 5M Single 4.0mm 5.0mm 3.0mm Polarity B

Product Description of MPO MTP Cable:

MPO (Multi-Fiber Push-on) is the first generation of clip clamping multi-core optical fiber connector. MTP/MPO cables are composed of MTP/MPO connectors and optical fibers. MTP/MPO connectors have a female type (without pins) or a male one (with pins). And a white dot is for identifying fiber position in connectors. MTP/MPO connectors largely increase the cable density and save circuit card and rack space, which are well suited for current 40G/100G cabling and future network speed upgrades.

Application of MPO MTP Cable:

Military industry
Medical
Telecom system
Data Center
High Density Cabling Solution
MPO/MTP cassette
LANs and WANs
FTTx
Connection of indoor to outdoor optical cable wiring equipment
For internal connection applications of optical transceivers, 40G/100G QSFP, QSFP+ and other optical transceivers.
Wiring of local area network between different enterprise buildings
Connection of optical links in optical active devices
Optical fiber to the building (FTTB) application
Data Centre Infrastructures

Features of MPO MTP Cable:

UPC/APC polishing
Diameter: 0.9, 2.0, and 3.0mm
OS2, OM1, OM2, OM3, OM4, OM5 available
0.30dB elite low loss connector
100% factory tested
Good in exchange
Green production, CE, RoHS standard
Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
Single-fiber connector type available in LC, SC with APC or UPC polishing type
100% 3D tested/End surface tested/Loss tested/Polarization before delivery
MTP is optional.
US Conec MTP/Senko MTP/OPTICO MPO connectors are available
High quality ferrule and accurate alignment by PIN and PIN hole
Low insertion loss and high return loss
High interchangeability and durability
Compliant with Telcordia GR-326-CORE, IEC and RoHS standards

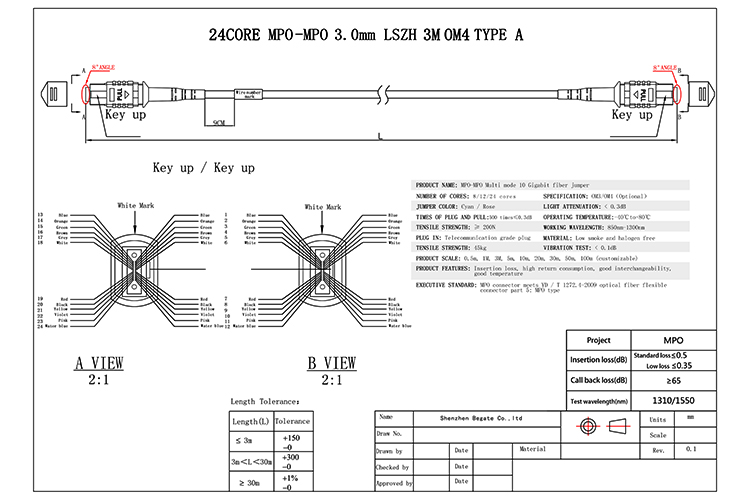

MPO fiber optic patch cord comes in many types and design blueprint can be provided quickly.
10G fiber or LSZH cable is available
Excellent changeability and repeatability
Fanout Length: 0.5M or 1M

Technical Specificaitons of MPO MTP Cable:

Connector A	MPO Female (pinless)	Connector B	MPO Female (pinless)
Fiber Mode	OM4 50/125μm	Wavelength	850/1300nm
Polish Type	UPC to UPC	Minimum Bend Radius	30mm
Insertion Loss	0.35dB Max(0.15dB Typ.)	Return Loss	≥20dB
Attenuation at 850nm	≤2.3dB/km	Attenuation at 1300nm	≤0.6dB/km
Jacket OD	3.0mm	Cable Jacket	LSZH
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Storage Temperature	-40°C to +85°C	Operating Temperature	-10°C to +70°C

Model		SM	MM
Connector A and B : MPO/MTP
Connector Fiber Count	8,12,24,32,48 Core
Polish		PC,APC	PC
Insertion Loss	Standard	≤0.70dB	≤0.50dB
	Elite Low Loss	≤0.35dB	≤0.30dB
Return Loss		PC≥50dB,APC≥60dB	≥30dB
Connector B:LC,LC Uniboot,SC,FC,ST
Polish		PC,APC	PC
Insertion Loss		≤0.2dB	≤0.2dB
Return Loss		PC≥50dB,APC≥60dB	≥35dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm

Factoy Workshop of MPO MTP Cable:

OEM and ODM:

OEM/ODM order is available:
1. We can supply products according to your requirements, and design products label for your company.
2. Shipment:International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5days.
3. Guarantee:We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

Why choose Begate?

1. We can reduce your costs(Factory-sale)
2. Reliable quality(2years warranty)
3. Fast delivery(within 7days)
4. No MOQ (1piece okay)
5. Credit supports.
6. Customization(Print your logo).
7. Free sample
8. High efficient and professional sales and aftersales services.
9. One-stop services.

Thank you very much for browsing our website and welcome your inquiry at any time. We will serve you wholeheartedly.
