Name: 50mm Custom Length 300 OM3 MPO Cable Multimode Fiber Optic Patch Cord
Brand: US CONEC, Nissin, SENKO, OEM or ODM
Price: 1 USD

5.0mm Custom Length 300 OM3 MPO Cable Multimode Fiber Optic Patch Cord

Ask Lasest Price

Brand Name :

US CONEC, Nissin, SENKO, OEM or ODM

Model Number :

MPO MTP OM3 300 5.0mm Patch cord

Certification :

CE/RoHS/ISO9001

Price :

To be negotiated

Payment Terms :

T/T, Western Union, L/C, MoneyGram, D/A, D/P, Paypal , Cash

Supply Ability :

3000 pieces / day

Delivery Time :

Samples within 3 days, bulk orders within 12 working days

5.0mm Custom Length 300 OM3 MPO Cable Multimode Fiber Optic Patch Cord

MPO MTP Cable 5.0mm Custom Length Multimode OM3 300 Fiber Optic Patch Cord

Product Description of MPO MTP Cable:

MPO (Multi-Fiber Push-on) is the first generation of clip clamping multi-core optical fiber connector. MTP/MPO cables are composed of MTP/MPO connectors and optical fibers. MTP/MPO connectors have a female type (without pins) or a male one (with pins). And a white dot is for identifying fiber position in connectors. MTP/MPO connectors largely increase the cable density and save circuit card and rack space, which are well suited for current 40G/100G cabling and future network speed upgrades.

MPO connector is a multi-core multi-channel plug-in connector, which is composed of a pair of MT sleeves, two guide pins, two shells and an adapter. Its standard feature is to use a guide hole and a guide pin with a standard diameter of 6.4 mm x 2.5 mm on the end face of a rectangular plug core for positioning and alignment.

Features of MPO MTP Cable:

Good in exchange
Green production, CE, RoHS standard
Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
Single-fiber connector type available in LC, SC with APC or UPC polishing type
100% 3D tested/End surface tested/Loss tested/Polarization before delivery
MTP is optional.
US Conec MTP/Senko MTP/OPTICO MPO connectors are available
High quality ferrule and accurate alignment by PIN and PIN hole
Low insertion loss and high return loss
High interchangeability and durability
Compliant with Telcordia GR-326-CORE, IEC and RoHS standards
MPO fiber optic patch cord comes in many types and design blueprint can be provided quickly.
10G fiber or LSZH cable is available
Excellent changeability and repeatability
Fanout Length: 0.5M or 1M
Compliance with Telcordia GR-1435-Core Compliant

Differences between conventional OM1/ OM2/ OM3/ OM4 optical cables:

OM1 is a conventional 62.5/125 optical fiber.
OM2 is a conventional 50/125um, OM3 (50/125, 10 Gigabit multimode fiber, including OM3/150, OM3/300), OM4 (an upgraded version of OM3, which is classified as OM4/550 by the industry), and OM5 (50/125, 10 Gigabit multimode fiber).
The OM2 optical fiber uses LED (Light Emitting Diode) as the basic light source in both standard and design, while OM3 and OM4 are optimized on the basis of OM2, making them suitable for transmission with LD (Laser Diode Laser Diode) as the light source at the same time. Compared with OM2, OM3 has higher transmission rate and bandwidth, so it is called optimized multimode fiber or 10GbE multimode fiber, while OM4 is further optimized on the basis of OM3, Better performance.

Application of MPO MTP Cable:

Military industry
Medical
Telecom system
Data Center
High Density Cabling Solution
MPO/MTP cassette
LANs and WANs
FTTx
Connection of indoor to outdoor optical cable wiring equipment
For internal connection applications of optical transceivers, 40G/100G QSFP, QSFP+ and other optical transceivers.
Data Centre Infrastructures
Wiring of local area network between different enterprise buildings
Connection of optical links in optical active devices
Optical fiber to the building (FTTB) application

Technical Specificaitons of MPO MTP Cable:

Connector A	MPO Female	Connector B	MPO Female
Fiber Mode	MM 50/125um OM3 300	Test Wavelength	850/1300nm
Polish Type	PC to PC	Minimum Bend Radius	10mm
Insertion Loss	≤0.70dB(0.40dB Typ.)	Return Loss	≥25dB
Attenuation at 850nm	≤2.3dB/km	Attenuation at 1300nm	≤0.6dB/km
Cable Jacket	LSZH	Cable Jacket O.D	3.0mm
Installation Tensile Load	120N	Long-Term Tensile Load	50N
Operating Temperature	-20°C to +70°C	Storage Temperature	-40°C to +85°C

Model		SM	MM
Connector A and B : MPO/MTP
Connector Fiber Count	8,12,24,32,48 Core
Polish		PC,APC	PC
Insertion Loss	Standard	≤0.70dB	≤0.50dB
	Elite Low Loss	≤0.35dB	≤0.30dB
Return Loss		PC≥50dB,APC≥60dB	≥30dB
Connector B:LC,LC Uniboot,SC,FC,ST
Polish		PC,APC	PC
Insertion Loss		≤0.2dB	≤0.2dB
Return Loss		PC≥50dB,APC≥60dB	≥35dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm

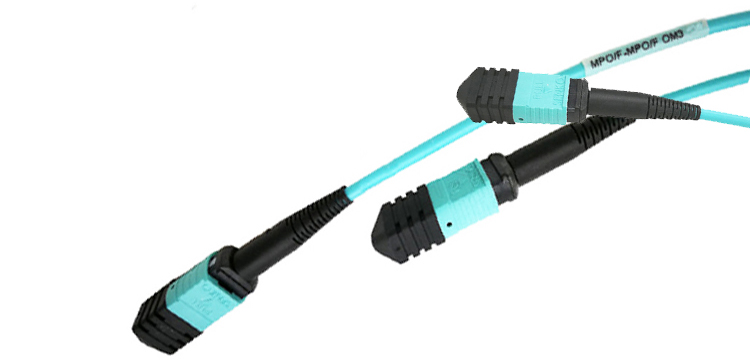

Detail of MPO MTP Cable:

Factoy Workshop of MPO MTP Cable:

OEM and ODM:

OEM/ODM order is available: we can supply products according to your requirements, and design products label for your company.
Shipment: International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5days.
Guarantee: We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

Why choose Begate?

We can reduce your costs(Factory-sale)
Reliable quality(2years warranty)
fast delivery(within 7days)
No MOQ (1piece okay)
Credit supports.
Customization(Print your logo).
Free sample
High efficient and professional sales and aftersales services.
One-stop services.
