Name: 12 Core 5M MPO MTP Cable OM4
Brand: Begate，or Custom
Price: 1 USD

12 Core 5M MPO MTP Cable OM4

Ask Lasest Price

Brand Name :

Begate，or Custom

Model Number :

12Core 5M MPO MTP Cable Female 10MB Multi Mode

Certification :

CE/RoHS/ISO9001

Price :

Negotiable

Payment Terms :

T/T, L/C, Western Union, MoneyGram, D/A, D/P, Paypal , Cash

Supply Ability :

3000 pieces / day

Delivery Time :

Samples within 3 days, bulk orders within 12 working days

12 Core 5M MPO MTP Cable OM4

12Core 5M MPO MTP Cable Female 10MB Multi Mode OM4 Polarity A Low Insertion Loss

Product Description of MPO MTP OM4 Cable:

There are many types of MPO fiber connectors. In addition to the number of cores, there are single-mode, multi-mode, standard loss, and low-loss cores. And for 40G module or 100G module cores, are multi-mode cores, 40G for 8-core multi-mode cores, 100G for 20-core multi-mode cores, that is, a core is 10G, 8 core is 40G. Why not 80 gigabytes? Because 8 core inside, the signal is received have sent, receive signal 4 core, transmit signal 4 core, a core 10G, it is 40G, 100G of the same reason. If the 40G MPO fiber jumper is in the form of MPO-MPO, the 12-core MPO multi-mode core is generally used for production. If the 100G MPO fiber jumper is in the form of MPO-MPO, the 24-core MPO core is generally used for production. Unused channels are left blank

Features of MPO MTP OM4 Cable:

Compliance with Telcordia GR-1435-Core Compliant
US Conec MTP/Senko MTP/OPTICO MPO connectors are available
High quality ferrule and accurate alignment by PIN and PIN hole
Low insertion loss and high return loss
High interchangeability and durability
MPO fiber optic patch cord comes in many types and design blueprint can be provided quickly.
Compliant with Telcordia GR-326-CORE, IEC and RoHS standards
100% 3D tested/End surface tested/Loss tested/Polarization before delivery
MTP is optional.

Advantages of MPO MTP OM4 Cable:

Easy management, high reliability, few fault points, fast wiring;
Small size, the volume is smaller than the SC connector;
High density, precise geometric design
Support 12 to 72 core or even 96 core fiber connections.

Application of MPO MTP OM4 Cable:

Connection of indoor to outdoor optical cable wiring equipment
For internal connection applications of optical transceivers, 40G/100G QSFP, QSFP+ and other optical transceivers.
Data Centre Infrastructures
Wiring of local area network between different enterprise buildings
Connection of optical links in optical active devices
Optical fiber to the building (FTTB) application;
Wiring in communication base station and distribution case
Production and testing of optical devices
Telecomunication Infrastructures
LANs and WANs
FTTx
Optical fiber communication system, CATV and telecommunication network

Technical Specificaitons of MPO MTP OM4 Cable:

Cable Type	12 Fiber	24 Fiber	48 Fiber	72 Fiber	144 Fiber
	1 Group	2 Groups	4 Groups	6 Groups	12 Groups
	12 Fibers per Group
Connector A	12 MPO Connector (Male or Female)
Connector A Count	1	2	4	6	12
	MPO/UPC or MPO/APC Connector
Connector A Breakout Length	Various Lengths
Connector B	12 Fiber MPO Connector (Male or Female)
Connector B Count	1	2	4	6	12
	MPO/UPC or MPO/APC Connector
Connector B Breakout Length	Various Lengths
Cable Jacket Type	Plenum (OFNP)
Total Cable Length	Various Lengths
Pin Out Configuration	Method A, B or C
Fiber Mode	Single Mode			Multimode
	9-125um			OM1-62.5/125um
				OM2/OM3/OM4-50/125um
Insertion Loss	0.35dB Max (0.15dB Typ.)			0.35dB Max (0.15dB Typ.)
Return Loss	≥60dB			≥20dB
Cable Jacket Color	Yellow			Orange/Aqua/Magenta

Type A	MPO MTP(Female)	Type B	MPO MTP(Female)
Fiber Type	OM4 50/125μm	Wave Length	850/1300nm
400G Transmission Distance	100m@850nm	Fiber Type	Corning ClearCurve
Polish Type	APC-APC	minimum bend radius	7.5mm
Insertion Loss	≤0.35dB(Typical Value 0.15dB)	Return LossL	≥20dB
Attenuation @850nm	≤2.3dB/km	Attenuation@1300nm	≤0.6dB/km
Diameter of outer sheath	3.0 mm	Outer sheath material	Plenum (OFNP)
Installation tensile load	100N	Long term tensile load	50N
Operating Temperature	-10°C ~ +70°C	Operating Temperature	-40°C~ +85°C

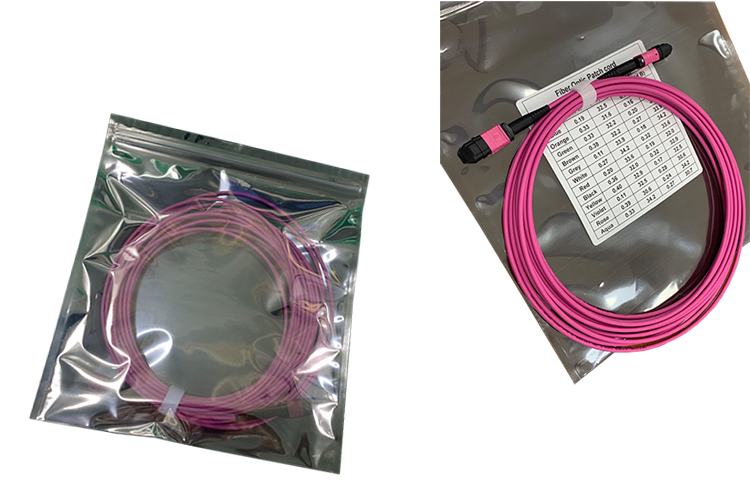

Packaging:

FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantit

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q: Do you accept OEM or ODM?
A: Yes,we're factory. any your customized requirements we can do our best to help you realize.
