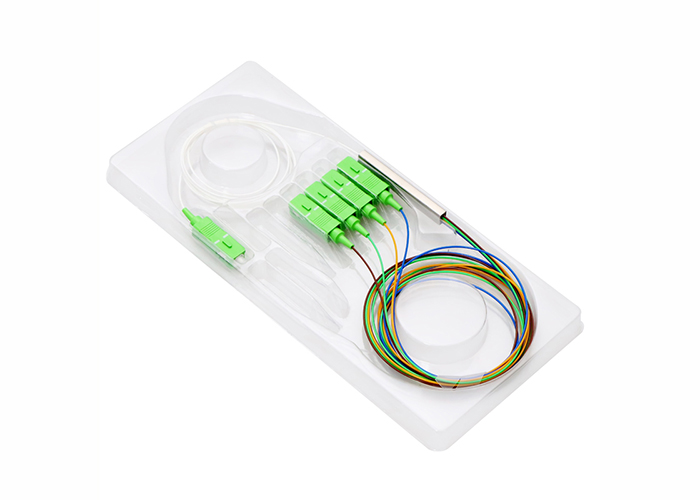

Fiber Plc Splitter 1x4 Sc Apc Fiber Optic Plc Splitter Mini Steel
Type Green
Products description of Fiber Optic PLC Splitter:
Planar waveguide light optical distributor (PLC Splitter), is a
kind of planar waveguide integrated optical device, it can be
1260nm ~ 1650nm such a wide range of wavelengths of light power
reservation in realization, the distribution of wavelength range
covers EPON technology used1310nm, 1490nm and 1550nm three
wavelengths. Especially suitable for EPON Ethernet passive optical
network access technology FTTP fiber network system, broadband
passive optical distributor (POS) use.
The PLC Splitters is branching devices that is used to distribute
optical signals to multiple locations for processing.
In optical networks, it is often necessary to split an optical
signal into many identical signals, or to combine many signals into
a single signal.
PLC Splitter (Planar lightwave circuit splitter) is a type of
optical power management device that is fabricated using silica
optical waveguide technology.
They are designed for FTTx Passive Optical Networks, CWDM, DWDM and
optical cable TV System. PLC Splitter is responsible to distribute
optical signals from Central Office (CO) to multiple premise
locations.
We provides whole series of 1*N and 2*N splitter products that are
tailored for specific applications.
Features of Fiber Optic PLC Splitter:
1. Low Insertion loss and Low PDL
2. Uniform power splitting
3. High reliability
4. Excellent environmental stability
5. Compact size and various package
Technical Specification of Fiber Optic PLC Splitter:
| Parameter/Type | Nx2
(N=1or2) | Nx4
(N=1or2) | Nx8
(N=1or2) | Nx16(N=1or2) | Nx32(N=1or2) | Nx64(N=1or2) |
| Fiber | 9/125 um SMF-28e or customer appoint |
| Operating Wavelength(nm) | 1260~1650(nm) |
| Insertion Loss | ≤3.9dB | ≤7.1dB | ≤10.3dB | ≤13.3dB | ≤16.3dB | ≤19.8dB |
| Loss Uniformity(dB) | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.2dB | ≤1.5dB | ≤2.0dB |
| Polariation Dependent Loss | ≤0.15dB | ≤0.15dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB |
| Return Loss | UPC≥50dB APC≥60dB |
| Directivity | ≥55dB |
| Working Temperature(℃) | -40°C to +85°C |
Packaging:
Every cooperation is a kind of trust, Begates cares about the
issues that our customers care about.
While ensuring product quality, we provide customers with safe
packaging, so that the goods can be delivered to customers in good
condition.
Factory Workshop:
Question: How long is shipping take typically?
Reply: The delivery time depends on the goods quantities. If light
weight, by express (DHL, FEDEX, TNT, UPS, Special line) will take
about 10-15days, if large quantities with big volume, and goods are
not in urgently needed, by ocean transportation will be more cost
effective, it will take around 30-60days.
Detail of Fiber Optic PLC Splitter:
FAQ:
Q1: Are you a manufacturer?
A: Yes, we are a manufacturer who has 3 factories and welcome to
visit!
Q2: What is your MOQ?
A: We are the factory. No MOQ, One piece is available.
Q3:Can you provide the OEM service?
A: Sure, we have the complete production line, we could do the
production as your request.
Q4. Can I have a sample order for this product?
A: Yes, for patchcord, FREE SAMPLE is avaible to test and check
quality. Mixed samples are acceptable.
Q5: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. or it is 7-15
days if the goods are out of stock. The lead time mainly depends on
quantity.
Q6: Can I negotiate the prices?
A:Yes, special discounts are available. The more quantities, the
cheaper prices.
Q7: How much will the shipping charges be?
A:It depends on the size of your shipment and the method of
shipping. We will offer the charge to you as per you requested.
Any more questions upon our products, and our company? please feel
free to contact us at any time.
