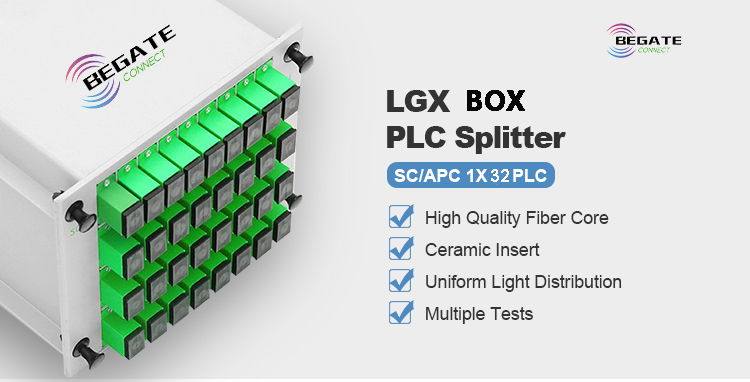

    RoHS Fiber Optic PLC Splitter 1x32 SC APC Splitter LGX Cassette FTTH

    Ask Lasest Price
    Brand Name : OEM
    Model Number : LGX Box PLC Splitter 1x32 SC APC
    Certification : CE/RoHS/ISO9001
    Price : Negotiable
    Payment Terms : PayPal, T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 800000 Piece/Pieces per Month
    Delivery Time : Samples within 3 days, bulk orders within 15 working days
    • Product Details
    • Company Profile

    RoHS Fiber Optic PLC Splitter 1x32 SC APC Splitter LGX Cassette FTTH

    Fiber Optic PLC Splitter 1x32 SC APC PLC Splitter LGX Box Cassette FTTH


    Product Description of Fiber Optic Plc Splitter:

    The PLC (Planar Lightwave Circuit) planar waveguide optical splitter is composed of an optical
    waveguide chip and optical fiber arrays coupling at both ends. This product uses semiconductor lithography technology to manufacture the optical splitter chip, with stable process, good output consistency, loss and optical wavelength Irrelevant, good channel uniformity, compact structure and small size, widely used in optical fiber communication lines of telecom operators, especially FTTX projects.


    Features of Fiber Optic Plc Splitter:

    1. Loss is not sensitive to the wavelength of light, and can meet the transmission needs of different wavelengths.

    2. The light is evenly distributed, and the signal can be evenly distributed to users.
    3. The structure is compact and the volume is small, it can be directly installed in the existing various transfer boxes without leaving a large installation space.
    4. There are many shunt channels for a single device, which can reach more than 32 channels.
    5. Wide operating wavelength
    6. Low insertion loss
    7. Low polarization-dependent loss
    8. Good consistency between channels
    9. High reliability and stability
    10. RoHS compliant
    11. Can provide different types of connectors according to customer needs, fast installation, reliable performance

    Applications of Fiber Optic PLC Splitter:

    1. Fiber to the point (FTTX)
    2. Fiber to the home (FTTH)
    3. Passive optical networks(PON)
    4. Local area networks (LAN)
    5. Cable television (CATV)
    6. Test equipment


    Specification of Fiber Optic PLC Splitter:

    1.

    Product Size
    Model1*2/4/81*161*321*64
    Bare fiber (250umfiber )4*4*404*7*504*7*504*12*60
    Mini type(0.9mm loose)4*7*604*12*606*20*806*40*100
    ABS Box(2.0mm)10*20*9018*80*12018*80*12018*115*141
    10*80*100
    Slot-Box130*100*25130*100*50130*100*102130*100*206
    Rock Mounted(19’Inch)483*44.5*200483*44.5*200483*44.5*200483*89*200

    2.

    Parameters1×21×41×81×161×321×64
    Operating Wavelength (nm)1260～1650
    Fiber TypeG657A or customer specified
    Insertion Loss (dB)(Min/Max)3.8/4.07.2/7.410.5/10.713.5/13.716.5/16.920.5/21.0
    Loss Uniformity (dB)0.60.60.81.21.52.5
    Return Loss (dB)555555555555
    Polarization Dependent Loss(dB)0.20.20.30.30.30.4
    Directivity (dB)555555555555
    Operating Temperature (℃)-40～+85
    Storage Temperature (℃))-40～+85
    Operating Humidity5% ~ 85% RH
    Storage Humidity5% ~ 85% RH
    Device Dimension (mm) (L×W×H)40×4×440×4×440×4×450×4×450×7×460×12×4
    Module Dimension (mm) (L×W×H)100×80×10100×80×10100×80×10120×80×18140×115×18140×115×18
    Mini-Module Dimension (mm) (L×W×H)50×7×450×7×460×7×460×12×480×20×6N/A

    Factory Workshop:

    Packaging:


    Customers` feedback:

    RoHS Fiber Optic PLC Splitter 1x32 SC APC Splitter LGX Cassette FTTH


    Why choose Begate?

    1. Own factory. We can save your money(Factory-sale),
    2. Strong R&D ability
    3. Strictly quality control with Reliable quality(2years warranty),
    4. Fast delivery(within 7days)
    5. No MOQ (1piece okay)
    6. Credit supports.
    7. Customization(Print your logo).
    8. Free sample
    9. One-stop procurement of products in the telecommunication industry can be achieved.
    10. High efficient and professional sales and aftersales services, care bout partners benefits and win-win situation.


    Thank you very much for browsing our website and welcome your inquiry. Any more questions? please feel free to contact us now.
    We will serve you wholeheartedly.
