1270-1650nm Wavelength Mini Optic Splitter 1x32 PLC Splitter OEM ODM

Mini Optic Splitter China 1x32 Sc Splitter Optical Fiber Splitter PLC

Product Description

The Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. Features include small size, high reliability and a wide operating wavelength. The PLC splitter is widely used in all fiber optic networks to realize optical signal power splitting. All products are GR-1221-CORE compliant.

Junjin's fiber optic splitters are available in a wide range of styles and sizes to split or combine light with minimal loss. All splitters are manufactured using a very simple process that produces reliable, low-cost devices. Splitters can be fabricated in custom fiber lengths and with any type of connector. Multicom PLC splitters are available in tube, box, cassette, and rack mount configurations, from 1 to 32 splits, even or customized splits, single and multimode, with any connector type.

plc splitter Specifications

1) low IL&PDL
2) uniformity&high reliability
3) 1270~1650nm wavelength
4) PLC Splitter :1x2,1x4,1x8,1x16,1x32,1x64,2x2,2x4,2x8,2x32,2x64

PLC splitter Features

Good uniformity and low insertion loss

Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical

PLC splitter Application

Fiber to The Home (pc plastic fiber splice closure with splitter)

Passive optical networks (PON)

Local Area Networks (LAN)

Cable Television (CATV)

Test Equipment

PLC splitter key features and the applications

Key Features	Applications
- Low IL Key Features	- FTTX (FTTP, pc plastic fiber splice closure with splitter, FTTN, FTTC)
- High reliability	- Local Area Networks (LAN)
- High channel counts	- Test Equipment
- Wide wavelength range	- CATV
- Large operating temperature range	- Analog/Digital Passive Optical Networks (PON)
- Excellent Environmental & Mechanical Stability

1×N plc splitter Specifications
Port Configuration	ch	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Fiber Type		SMF-28e, G652, G655, G657 (or Customized)
Operating Wavelength		1260~1650
IL	dB	≤4.1	≤7.4	≤10.5	≤13.5	≤16.8	≤20.4	≤23.7
UL	dB	≤0.5	≤0.6	≤0.8	≤1.0	≤1.3	≤1.8	≤2.1
PDL	dB	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.4
RL	dB	≥55
Operating Temperature	°C	-40~+85
Storage Temperature	°C	-40~+85
ABS box size	mm	14111518

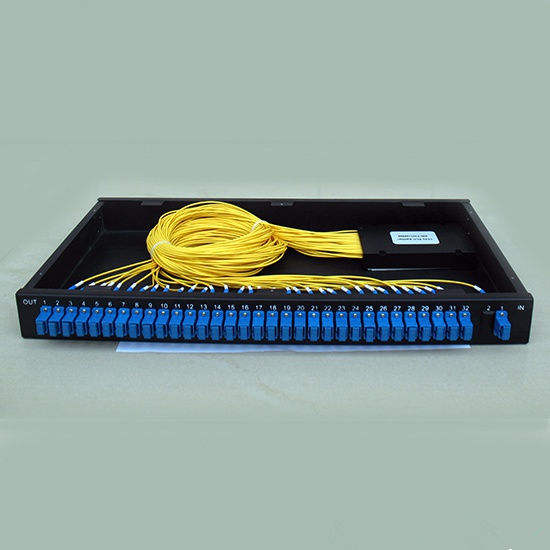

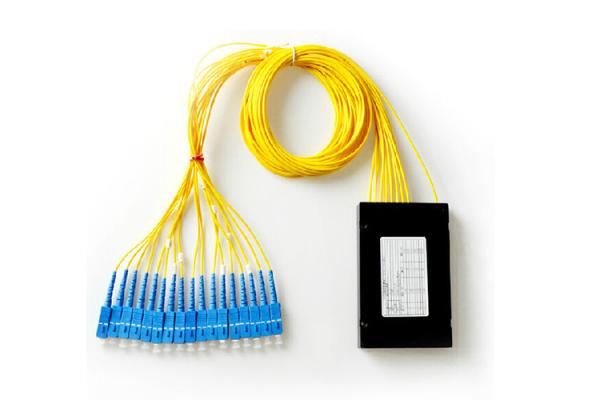

Detial of Fiber Optic PLC Splitter:

FAQ:

Q1: Are you a manufacturer?
A: Yes, we are a manufacturer who has 3 factories and welcome to visit!

Q2: What is your MOQ?
A: We are the factory. No MOQ, One piece is available.

Q3:Can you provide the OEM service?
A: Sure, we have the complete production line, we could do the production as your request.

Q4. Can I have a sample order for this product?
A: Yes, for patchcord, FREE SAMPLE is avaible to test and check quality. Mixed samples are acceptable.

Q5: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. or it is 7-15 days if the goods are out of stock. The lead time mainly depends on quantity.

Q6: Can I negotiate the prices?
A:Yes, special discounts are available. The more quantities, the cheaper prices.

Q7: How much will the shipping charges be?
A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as per you requested. Any more questions upon our products, and our company? please feel free to contact us at any time.
