OM3 OM4 High Speed MPO MTP Cable Multi Mode Fiber Optic Patch Cord

Ask Lasest Price
Brand Name :	Begate, OEM and ODM
Model Number :	MTP MPO fiber optic patch cord cable
Certification :	CE,ROHS,ISO9001,IEC and TIA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :	5000 pieces / day
Delivery Time :	Trial order within 3 working days, and bulk orders within 12 working days

Add to Cart

Product Details
Company Profile

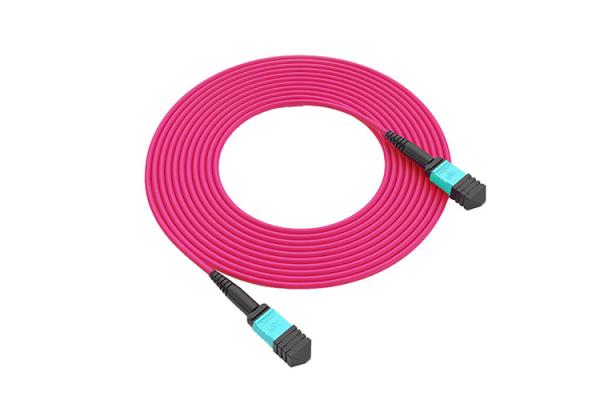

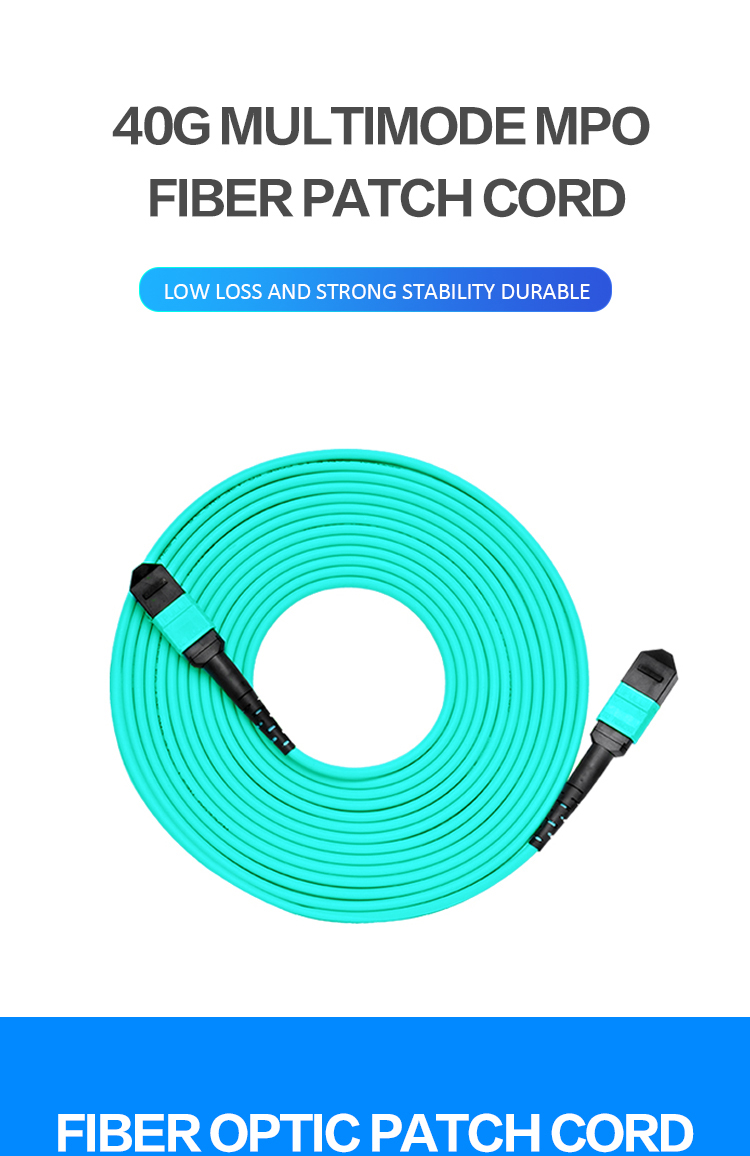

OM3 OM4 High Speed MPO MTP Cable Multi Mode Fiber Optic Patch Cord

Multi Mode OM3 OM4 High Speed MTP MPO Fiber Optic Patch Cord Cable

Product Description

MPO cable assemblies are with 12 core MPO connector female to female. cable type OM3, the cable is widely used for cable expanding in the data center.

Feature

● 12 core cable connection
● OM3/OM4 fiber optic cable
● Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
● Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy f for storage and cable install
● Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage

Connector A	MPO Female (pinless)	Connector B	MPO Female (pinless)
Fiber Mode	OM4 (OM3) 50/125μm	Wavelength	850/1300nm
40/100G Ethernet Distance	150m at 850nm	10G Ethernet Distance	400m at 850nm
Glass Fiber	Corning ClearCurve®	RoHS Compliancy Status	Compliant
Polish Type	UPC to UPC	Minimum Bend Radius	7.5mm
Insertion Loss	0.35dB Max(0.15dB Typ.)	Return Loss	≥20dB
Attenuation at 850nm	≤2.3dB/km	Attenuation at 1300nm	≤0.6dB/km
Jacket OD	3.0mm	Cable Jacket	LSZH
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Storage Temperature	-40°C to +85°C	Operating Temperature	-10°C to +70°C

Product Details

Begate provides High Density Multi-fibers Solutions which are Fiber Optic pigtail in data center.
Welcome to your inquiry and we surely provide you good prices, reliable quality and great services!

All fiber optic pigtail will be 100% tested before delivery in Begate

Company information

Shenzhen begate Co., Ltd is located in longhua, Shenzhen. The factory covers an area of 20,000 square meters, and has a complete set of automated production and testing equipments. Begate is specialized in manufacturing of network cables, optical fiber quick connector, fiber optical cables, fiber optic adaptor, fiber optic attenuator, fiber optic splitter, professional plc splitter cassette, fiber optic patch cord, fiber optic splice closure, FTTH series and other products of network cabling system. Our products also covers the fiber media converter, Fiber optic cross connect cabinet and Fiber optic splice closure, etc.
In order to meet more high end market’s needs, we imported REELEX machine from US and got the National High-Tech Enterprise Certification in the same year.
We have passed ISO9001-2008 and ISO14001 certification with excellent management systems.
