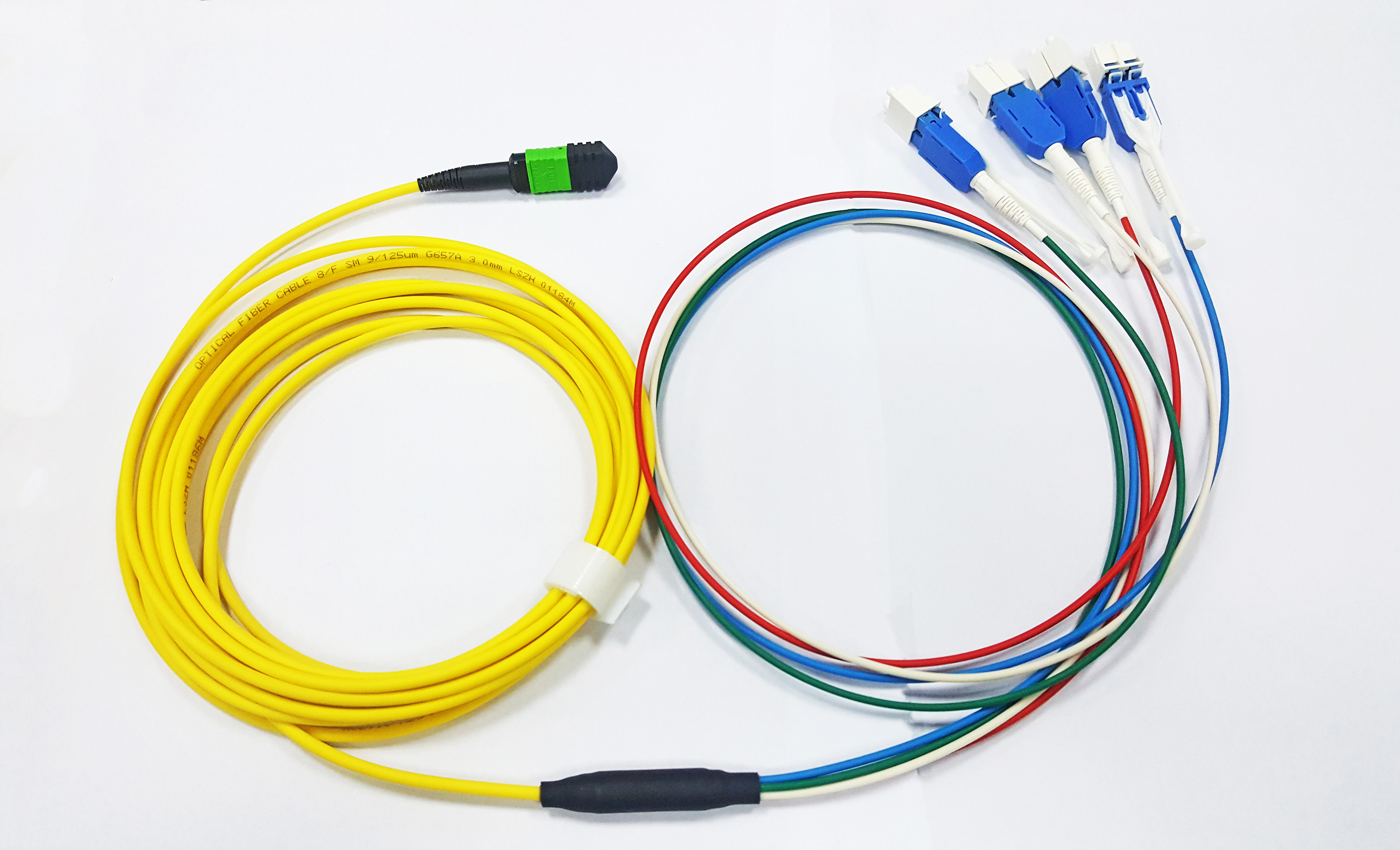

1310nm 1550nm Single Mode Fiber Optic Patch Cord MPO Fanout Cable 100% Tested

Description of Fiber Optic Patch Cord

Single Mode Low Loss 8/12/24core MTP/MPO to Uniboot LC QSFP and SFP modules Fanout hybrid patch cord for high density wiring

MPO Fanout hybrid patch cords are used to connect QSFP and SFP modules, and each cable has a MTP/MPO connector on one end, another end fanout with LC /SC/FC/ST connectors .

With highly integrated design and manufacturing capability, Shenzhen IH Fiber Cable can provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords , IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MTP Patch Cords ,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel

Features of Fiber Optic Patch Cord

1. 100% pre-terminated and tested in factory to ensure transfer performance

2. Rapid configuration and networking, time-saving

3. Supports 40G and 100G network applications

4. Jacket material: LSZH, OFNR, OFNP available

5. Supports up to 12C, 24C, 48C, 72C,96C, 144C

Application

1. High density architectures

2. Data communication network

3. Optical System Access network

4. Storage area networking fiber channel

5. LANS / WANS/ FTTX

Specification

Specification	Single Mode			Multi Mode
Parameter	PC	UPC	APC	UPC
Operating Wavelength	1310nm, 1550nm			850nm, 1300nm
Insertion Loss	≤0.3dB	≤0.2dB	≤0.3dB	≤0.2dB
Return Loss	≥40dB	≥50dB	≥60dB	≥30dB
Fiber Type	G652D,G655, G657A1, G657A2, G657B3			OM1/OM2/OM3/OM4/OM5
Fiber Brand	YOFC,Corninng
Exchange	≤0.2dB
Repeartability	≤0.2dB
Durability	> 500 times
Connectors Type	MPO MTP female/male to LC/ SC/FC/ST ( UPC or APC )
Cable Type	8/12/24 cores Mini Bundle / Ribbon / Bare Ribbon cable
Sheath Material	PVC, LSZH, OFNR, OFNP
Cable Diameter	φ3.0mm or Specify
Length (M)	Customized
Operating Temperature	-40℃~+60℃
Storage Temperature	-45℃~+85℃

Begate fiber patchcord assembly line

Begate provides a full set of fiber optic patch cords customized services, such as fiber connector, length, color, fiber grade, specifications, materials, packaging, etc. All patch cords are functionally tested before shipping, ensure that the end face is spotless, insertion loss and return loss are in line with international telecommunication standards.

Packaging and shipping of Fiber Optic Patchcords

Every cooperation is a kind of trust, Begates cares about the issues that our customers care about.

While ensuring product quality, we provide customers with safe packaging, so that the goods can be delivered to customers in good condition.
