Data Centre MPO MTP Patch Panels

MPO MTP Patch Panels LC 96 Core Rack Mounted Fiber Optic Patch Panels Data Centre

Product Description of MPO MTP Patch Panels:

MPO/MTP Rack Mounted Fiber Optic Patch Panel or MPO/MTP ODF can be applied in the storage of indoor optical cable, distribution and terminal connection of various optical fiber system, Available for the rack installation of adaptors for FC,SC,ST,LC and so on. The case body is made of cold rolled steel sheet, available for adaptors installation such as FC, SC, ST, LC etc.

Applications of MPO MTP Patch Panels:

1. Data Centre infrastructure
2. Storage Area Network-Fiber Channel
3. Data communication applications
4. Emerging 40 and 100Gbps Protocols compatible

5. Fiber to the home (FTTH)

6. LAN/ WAN Network

7. CATV Network

Features of MPO MTP Patch Panels:

1. Pre-connected with adapters and pigtails make installation much easier, and save time

2. Loading with SC/FC/ST simplex make it to be 48 cores, loading with LC duplex make it to be 96cores

Technical Parameter of MPO MTP Patch Panels:

1. MPO Patch Panel with 4pcs MPO cassettes

2. Material: cold rolled steel
3. Structure: 1U, 19' Rack Mounted
4. Availabe adapter port: LC, SC, FC, ST

5. Material thickness:1.2mm
6. Capacity: 4pcs MPO Cassettes

S/N	Description
MPOP-1U	MPO Sliding Panel, 1U Rack mount, for 4 cassette modules
MPOP-2U	MPO Sliding Panel, 2U Rack mount, for 8 cassette modules
MPOP-4U	MPO Sliding Panel, 3U Rack mount, for 12 cassette modules

Fiber Capacity of panel	12-144 core(12 24 48 port usually)
Panel Connector	SC LC ST FC MTP/MPO E2000
Type	Sliding Fixed
Dimension	19'' 1U/2U/3U/4U...
Material	Cold Rolled Steel or Aluminum
Storage Temperature	-45~+65℃
Thickness	1.0 1.2 mm
1.0 1.2 mm	Cable ties, mounting ear screws, and spiral wrap tube
Depth	205mm
Packaged weight	3 kgs
IP rating	IP20
Width	482mm
Net weight	2.5 kgs
Accessories	Cable ties, mounting ear screws, and spiral wrap tube

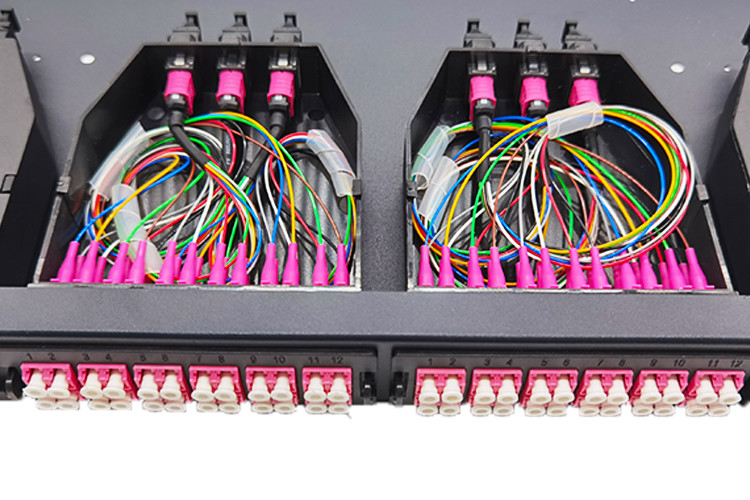

Details of MPO MTP Patch Panels:

Data Centre MPO MTP Patch Panels
