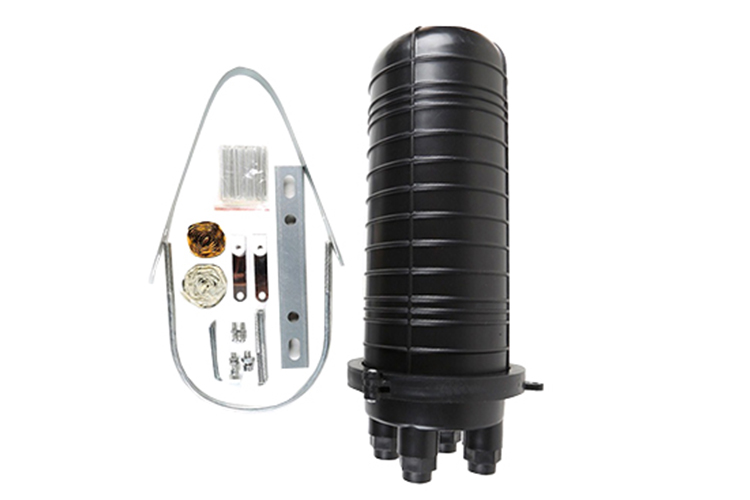

96F Fiber Optic Joint Closure Fiber Optic Enclosure Box For 96
Thread Fiber
Product Overview of Fiber Optic Enclosure:
Fiber Optic Splice Closure is used for connecting and protecting
singal core or bunch cables. It can be placed in underground,
aerial,
wall-mounting, pedestal or direct buried, hand hole-mounting and
duct-mounting applications.
We always aim to the R&D of communication equipment. Our fiber
closures can improve the operation of your network communication
system. Closure is suitable for the applications up to 96 single
fibers,which can cover most of the applications in the
long-distance transmission and local fiber distribution networks,
like Fiber To The Home / Fiber To The Curb(FTTH/FTTC).
fiber optic splice closures are used throughout the network,
including the fiber trunk, feeder, distribution, and last mile
segments. Our closure are normally used to connect optical cables
in the long-distance transmission network, closure also routes and
branches optical fibers.fiber to the home (FTTH) is a type of point
to multiple points (P2MP) network with many branching points, so
closures are widely used to implement cable distribution, optical
fiber splitting, and flat drop cable output.
Features of Fiber Optic Enclosure:
- High mechanical strength and sealing performance
- Anti-corrosion, IP68 waterproof rate
- High aging resist engineering plastic PPR/ABS body
- Wide scope of application ( up to 144 cores)
- Easy clamp mount around pole
- Easy maintenance ,rejoint and expand
- Designed for ftth with adapter if need.
- Fiber storage with big basket
- Modular fiber management system
- The closure can be used in duct, buried, overhead..etc
- High quality impact material pp and internal is PP,ABS
- Cable diameter range: 8~20 mm
- Sealing way of cables: Mechanical sealing by silicon rubber
Applications of Fiber Optic Enclosure:
- Fiber optic cable fusion, protects and preformed
- Patch panels
- Distribution frames
- Maintenance or emergency restoration of fiber networks
- FTTH Outlets
- Connection at the desk for LAN environments
- Suitable for bunchy & ribbon fibers
- Aerial, underground, wall-mounting, hand hole-mounting and
duct-mounting
- It's especially applicable to FTTH optical fiber distribution
Technology Specification:
A.
| Product name | Application | Material | Capacity | Packing |
| Fiber Optic Splice Closure | FTTH | Strengthen Polymer Plastic | 12/24/48/96 core | 1 pcs /box |
| OEM | Certification | Usage | Height | Diameter |
| Weclome | ISO9001:2008 | 20 year | 420mm | 140mm |
B.
| Descriptions | Specification |
| Type | Dome,horizantal |
| In and out ports | one-in-one-out,two-in-two-out,three-in-three-out and so on |
| Fiber cores | 12 to 288 cores |
| Material | Excellent project plastic (PC ABS PPR) |
Details of Fiber Optic Enclosure:
FAQ:
Q1. Could you offer samples?
Yes, samples are accepted.You need place sample order to us, and we
will reduce from bulk order.
Q2. What's the delivery time for sample order?
Normally about 3days after confirmation.
Q3. What's the delivery time for bulk order?
Normally 5-10 days depends on products and order quantities.
Q4. Could you do design for us?
Yes, we provide customized service and can do artworks including
printing, logo etc. for you.
Q5. What's the payment terms?
TT, WesternUnion, Escrow(secure payment), Trade assurance, Cash,
etc.
Q6. Can I use my own LOGO and design on products?
YES, OEM is welcomed.
Q7. How to send the goods?
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo
by air & sea.
