IP68 Outdoor FTTA Waterproof Pre-Connection Distribution Box

Overview of Outdoor Pre-connection Distribution Box

The terminal closure is designed for use in outside plant fiber access networks. This product enables fast and easy connection and termination of customer drop cables while increasing deployment velocity. Its reliability and flexibility make it the ideal choice for network access point terminals in FTTX, aerial fiber installations and all fiber access network deployments in harsh environments. It is also the ideal solution in 5G and LTE applications to bring fiber to antenna systems (FTTA). Externally mounted hardened adapters allow for future installation of drops without closure reentry. Used in either spliced or pre-terminated applications, together with hardened pre-terminated outdoor cable cords it greatly increases labor efficiency and reduces the overall installation time required to connect customers in FTTX networks.

Features of Outdoor Pre-connection Distribution Box

• FTTH(Fiber-to-the-home) and FTTA(Fiber-to-the-antenna) applications.
• • The body material is reinforced plastic.
• Two layers designed.
• Support micro type 1x8 splitters installation.
• Splitter and internal pre-installation are finished in factory, fast deployment in field.
• Plug and play, EasyConnect drop cable access instead of fusion splice.
• Install cables without opening the box.
• Reliable sealing mechanism ensure the fiber security.
• Support mid-span function for the cable.
• Support cable break-out function to provide extreme convenience for various usages.
• Support wall, underground and aerial in-line installation.
• IP68 protection

Application of Outdoor Pre-connection Distribution Box

• Traditionally, Remote Radio Unit(RRU) and Building Base band Unit (BBU) should be connected by optical fiber cable, so each RRU need one duplex outdoor cable link to BBU, with high CAPEX and OPEX.
• This Box can perfectly work as an aggregation box, which links RRU and BBU with the break-out multi fiber cable. The both ends of cable are assembled with EasyConnect connectors. The solution largely save the overall cost and provide more security.
• ECDB-68 box is with IP68 protection, can be installed in harsh environment such as antenna for FTTA.

Technical specification of Outdoor Pre-connection Distribution Box

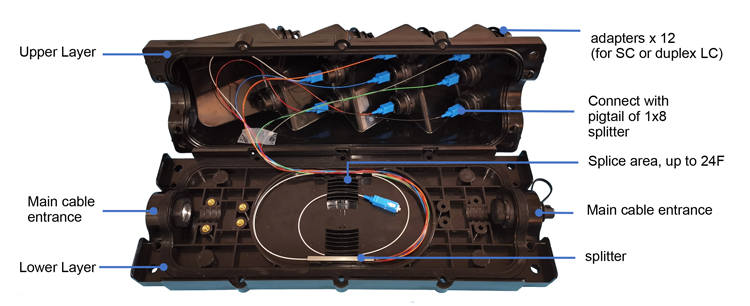

Inside structure of Outdoor Pre-connection Distribution Box

Dimension of Outdoor Pre-connection Distribution Box

Installation method of Outdoor Pre-connection Distribution Box
