MPO MTP Fiber Optical Connector With 8 12 16 24 32 Core MPO APC
Connector
Product Description of MPO MTP Fiber Optic Connector:
Optical fiber connector is one of the most basic components in
optical fiber communication.Connectors are made of ceramic, metal,
plastic and so on. Each connector has a different color frame and
tail sleeve for selection. Through solidification grinding and
other processes, optical fiber connectors are used to make jumpers
or tail fibers with various types of optical cables. They are
widely used in communication rooms, home-to-home optical fibers,
local area networks, optical fiber sensors, optical fiber
communication systems, optical fiber connection transmission
equipment, national defense preparedness and so on.
Features of MPO MTP Fiber Optic Connector:
1. Corrosion resistance and durability
2. Low insertion loss
3. Various types and colors of tail covers
4. Conforms to IEC 874-10 and ECCBFOC/2.5 and AT&T-ST II
standards.
5. Compliance with IEC-61754
6. Types available: assembled sets of connectors or unassembled
pieces of connectors
Application of MPO MTP Fiber Optic Connector:
1. Test Equipment
2. Telecommunication Networks
3. Local Area Networks (LANs)
4. Data Processing Networks
5. Premise Installations
6. Wide Area Networks (WANs)
7. Industrial, Medical & Military
8. CATV, Metro
9. Active Device Termination
Specification parameter of MPO MTP Fiber Optic Connector:
A.
| Fiber Mode | SM(singlemode), MM(multimode) |
| Fiber Diameter | 125um ( G652 ,G657 ) |
| Polish Type | UPC, PC, APC |
| Insertion loss | Average value≤0.25 dB,max value≤0.3 dB |
| Fiber cable type | 0.9mm/2.0mm/3.0mm |
| Endurance | 100times re-connections, ≤0.3dB |
| Operation temperature: | -40℃ - 75℃ |
| OME | Yes |
| Weight | 3.5g |
B.
| MPO Connector |
| Parameter | SM | MM |
| APC | PC |
| Insertion loss | 0.35dB Max (0.15dB Typ.) | 0.35dB Max (0.15dB Typ.) |
| Return loss | ≥60dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Ferrule Concentricity | ≤1um | ≤4um |

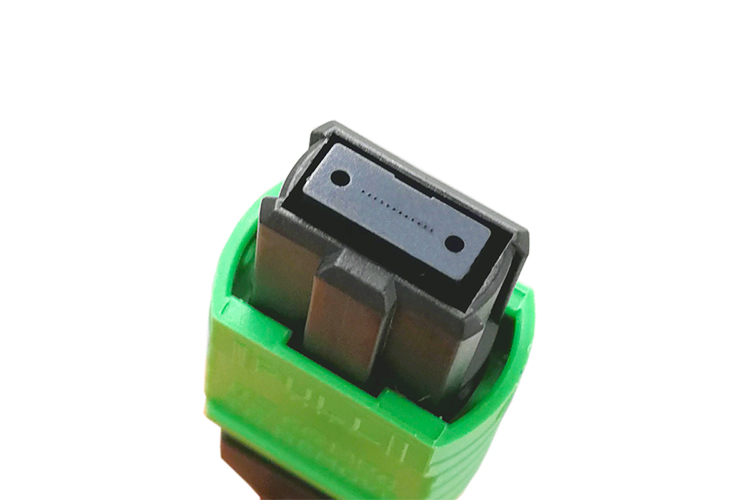

Details of MPO MTP Fiber Optic Connector:
Customers' Feedback:
FAQ:
Q1: Are you a manufacturer?
A: Yes, we are a manufacturer who has 3 factories and welcome to
visit!
Q2: What is your MOQ?
A: We are the factory. No MOQ, One piece is available.
Q3:Can you provide the OEM service?
A: Sure, we have the complete production line, we could do the
production as your request.
Q4. Can I have a sample order for this product?
A: Yes, for patchcord, FREE SAMPLE is avaible to test and check
quality. Mixed samples are acceptable.
Q5: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. or it is 7-15
days if the goods are out of stock. The lead time mainly depends on
quantity.
Q6: Can I negotiate the prices?
A:Yes, special discounts are available. The more quantities, the
cheaper prices.
Q7: How much will the shipping charges be?
A:It depends on the size of your shipment and the method of
shipping. We will offer the charge to you as per you requested.Any
more questions upon our products, and our company? please feel free
to contact us at any time.
