Black FTTH Fiber Optic Connector

Ask Lasest Price
Brand Name :	Begate, OEM
Model Number :	Fiber Optic Connector ST UPC Single Mode Simplex
Certification :	CE/RoHS/ISO9001
Price :	To be negotiated
Payment Terms :	PayPal, T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability :	800000 Piece/Pieces per Month
Delivery Time :	Samples within 3 days, bulk orders within 15 working days

Add to Cart

Product Details
Company Profile

Black FTTH Fiber Optic Connector

FTTH Fiber Optic Connector ST UPC Singlemode Simplex Connector With Black

Product introduction of Fiber Optic Connector:

ST UPC Optical Fiber Connector is one of the most basic components in optical fiber communication. The original FC, SC and MU connectors were developed by NTT Company of Japan, while DIN 47256 was developed by Germany. In order to reduce volume and save space, Bell Institute developed LC connectors. After decades of development, these connectors have been widely used all over the world.

Connectors are made of ceramic, metal, plastic and so on. Each connector has a different color frame and tail sleeve for selection. Through solidification grinding and other processes, optical fiber connectors are used to make jumpers or tail fibers with various types of optical cables. They are widely used in communication rooms, home-to-home optical fibers, local area networks, optical fiber sensors, optical fiber communication systems, optical fiber connection transmission equipment, national defense preparedness and so on.

Specification parameter of Fiber Optic Connector:

Parameter	Unit	FC,LC,SC				ST,MU,SMA905			MTRJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	13,101,510				13,101,510			13,101,510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	°C	-40~+75				-40~+75			-40~+75
Storage temperature	°C	-45~+85				-45~+85			-45~+85
Cable diameter	mm	Φ3.0,Φ2.0,Φ0.9				Φ3.0,Φ2.0,Φ0.9			Φ3.0,Φ2.0,Φ0.9

Fiber Mode	SM(singlemode), MM(multimode)
Fiber Diameter	125um ( G652 ,G657 )
Polish Type	UPC, PC, APC
Insertion loss	Average value≤0.25 dB,max value≤0.3 dB
Fiber cable type	0.9mm/2.0mm/3.0mm
Endurance	100times re-connections, ≤0.3dB
Operation temperature:	-40℃ - 75℃
OME	Yes
Weight	3.5g

Features of Fiber Optic Connector :

Corrosion resistance and durability
Low insertion loss
Various types and colors of tail covers
Conforms to IEC 874-10 and ECCBFOC/2.5 and AT&T-ST II standards.
Compliance with IEC-61754
Types available: assembled sets of connectors or unassembled pieces of connectors.
Superior qualified standard polishing;
100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
φ0.9mm, φ2.0mm, φ3.0mm cable optional
Simplex and duplex connector available;
Good exchange ability and good durability;
Available in fiber bunch, ribbon fan-out, pigtail available;
Meets ISO9001, ROHS and Bell core GR 326-core standards;
Customized specifications are welcomed.

Applications of Fiber Optic Connector:

Test Equipment
Telecommunication Networks
Local Area Networks (LANs)
Data Processing Networks
Premise Installations
Wide Area Networks (WANs)
Industrial, Medical & Military
CATV, Metro
Active Device Termination

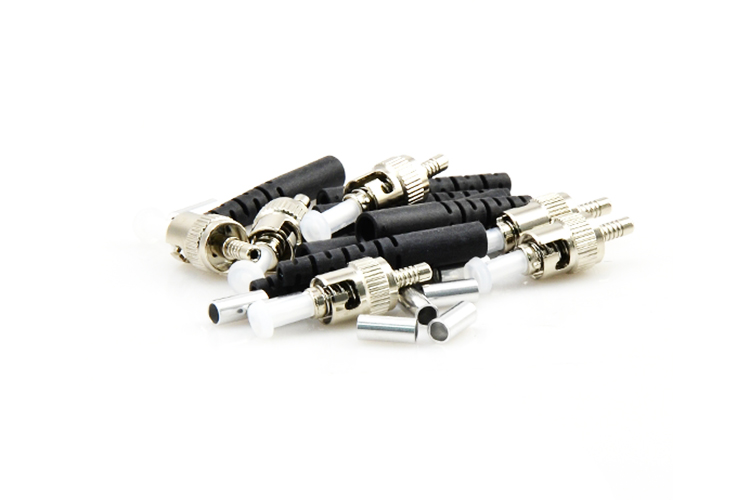

Detail of Fiber Optic Connector:

Factory Workshop:

Why choose Begate?

Own factory. We can save your money(Factory-sale),
Strong R&D ability
Strictly quality control with Reliable quality(2years warranty),
Fast delivery(within 7days)
No MOQ (1piece okay)
Credit supports.
Customization(Print your logo).
Free sample
One-stop procurement of products in the telecommunication industry can be achieved.
High efficient and professional sales and aftersales services, care bout partners benefits and win-win situation.

Thank you very much for browsing our website and welcome your inquiry. Any more questions? please feel free to contact us now.
We will serve you wholeheartedly.
