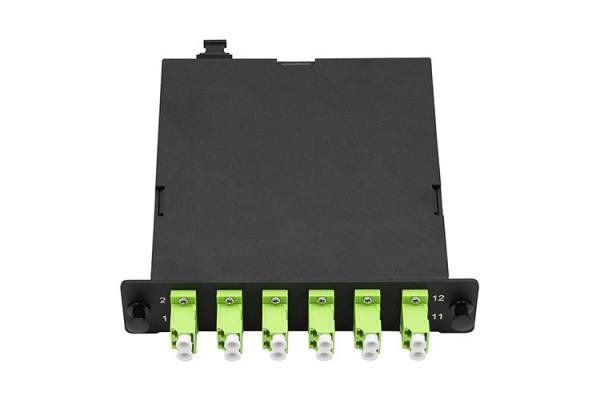

12 Fiber MTP MPO Male to LC Duplex Multimode OM5 Cassette 6 Ports Fully Loaded

Product Outline Presentation of MPO MTP Cassettes:

MTP/MPO Cassettes contain factory controlled and tested MTP/MPO-LC fanouts to deliver optical performance and reliability.Low loss MTP/MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes.Cassettes can be mounted in 1U or 3U 19" multislot chassis.

Applications of MPO MTP Cassettes:

• Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.
• Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation
• Provide termination, protection, connection, management of fiber optic cable
• Optical fiber test equipment
• Optical fiber sensor
• Industry and military application
• Storage area network - fibre channel
• Parallel optics
• High Density Fiber Management.
• High fiber density card edge access
• Telecommunications subscriber loop
• Fiber to the home (FTTH)
• Data center infrastructure
• Storage Area Networks( SAN) fiber channels
• 40G and 100G network applications
• Array trunk cable

Features of of MPO MTP Cassettes:

• Standard size, light weight and reasonable structure
• Splice tray inside changeable
• Suitable for ribbon and single fiber
• Various panel plate to fit different adapter interface
• Front mark on the plate is easy for identification and operation
• Customized fiber polarity in the module.
• High-density and small desing, Easy and fast installation
• High-quality engineering plastics and Aluminum alloy or cold-rolled sheet material
• Available in 12/24/48 fiber versions.
• Premium LC Low Loss terminations;
• Standard and Elite low loss MPO/ MTP® connectors;
• SM and MM (OM3/OM4) Versions.
• Can be used in 19'', 23'' standard distribution frame
• There are mark in the front of each port, and can be easily identified.
• Quick and easy installed ,flexible in configuration and easy to management.
• Field connections with guaranteed quality and simplifies fiber routing.
• Modular system management, easy reconfiguration for moves, adds and changes.
• Color coeed housings available to differentiate fiber type, polish type and/or connector grade.
• MPO faceplate can be upgraded easily.
• The front panel is equipped with LC , MTRJ or SC adapter, rear panel assembles the MPO adapter.
• 12,24,48,96Port optional

Advantage of Fibe Optic Cassette:

• Versatile panel with extendable double slide rails for smooth sliding
• Able to hold MTP (MPO) loaded cassettes
• Customize design available
• Comprehensive accessory kit for cable entry and fiber management
• 1RU suitable 2-4pcs KNC standard adapter plates at different size
• Silkscreen printing on the front aperture for fiber identification

Technical Specificaitons of MPO MTP Cassesttes:

1.

2.

Detail of MPO MTP Cassettes:
