MPO MTP Multi Mode Type A OM4 8F 12F 24F LSZH 3.0mm Mpo Fiber
Mpo Fiber overview
Multi-fiber push on connectors, or MPO for short, are fiber
connectors comprised of multiple optical fibers. While defined as
an array connector having more than 2 fibers, MPO Connectors are
typically available with 8, 12 or 24 fibers for common data center
and LAN applications. Other fiber counts are available such as 32,
48, 60 or even 72 fibers, but these are typically used for
specialty super high-density multi-fiber arrays in large scale
optical switches.
You may also see the term MTP Connector used interchangeably with
MPO Connector. The term MTP is a registered trademark of the MPO
connector offered by US Conec. The MTP connector is fully compliant
with MPO standards and is described by US Conec as a MPO that has
been engineered to very tight tolerances for improved performance.
MPO Fiber Application
1. Data center
2. Network interconnection
3. Network exspansion
4. Communication system
5. High density architectures
MPO Fiber specification
| MPO/MTP Connector | Standard SM Ferrule | Low Loss(Elite) SM Ferrule | Standard MM Ferrule | Low Loss(Elite) MM Ferrule |
| Insertion Loss | Typical (dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 |
| Return Loss | ≥60 for APC (8°Polish) | ≥20 for PC |
| Male / Female | Male:With Pins, Female:without pins |

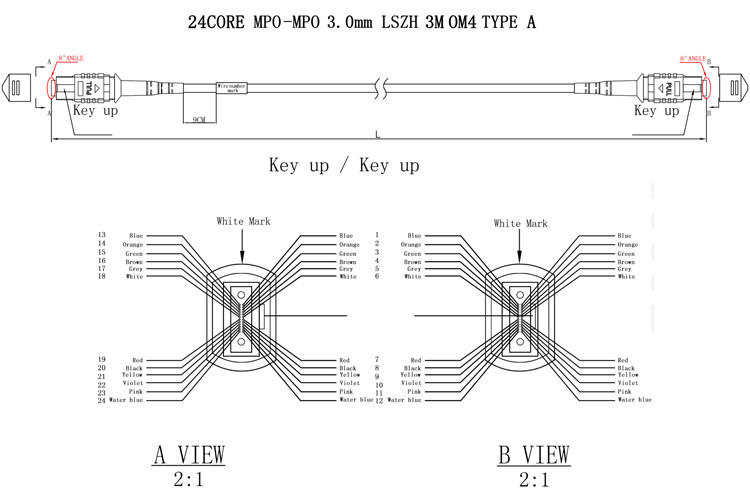

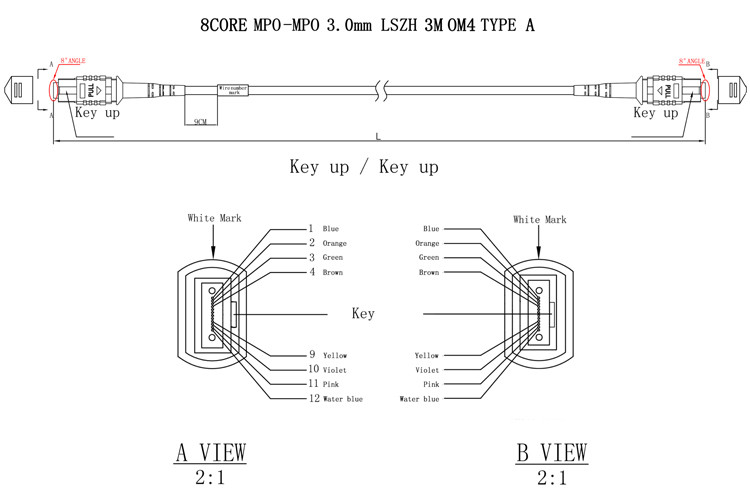

8F 12F 24 F OM4 Type A MPO Fiber structure
Begate MTP MPO Fiber Assembly line
Begate provides High Density Multi-fibers Solutions which are Fiber
Optic MTP® / MPO Assemblies application in data center.
Welcome to your inquiry and we surely provide you good prices,
reliable quality and great services!
All MTP MPO fiber will be 100% tested before delivery in Begate
Customers Feedback
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a manufacturer who has 3 factories and welcome to
visit!
Q2: What is your MOQ?
A: We are the factory. No MOQ, One piece is available.
Q3:Can you provide the OEM service?
A: Sure, we have the complete production line, we could do the
production as your request.
Q4. Can I have a sample order for this product?
A: Yes, for patchcord, FREE SAMPLE is avaible to test and check
quality. Mixed samples are acceptable.
Q5: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. or it is 7-15
days if the goods are out of stock. The lead time mainly depends on
quantity.
Q6: Can I negotiate the prices?
A:Yes, special discounts are available. The more quantities, the
cheaper prices.
Q7: How much will the shipping charges be?
A:It depends on the size of your shipment and the method of
shipping. We will offer the charge to you as per you requested.
Thank you very much for browsing our website and welcome your
inquiry. Any more questions? please feel free to contact us NOW. We
will serve you wholeheartedly.
