OS2 MPO APC Female SM 3.0mm Type B 3D tested MPO MTP trunk cables


Overview of MPO MTP trunk cables

As an experienced and innovative fiber optic cable manufacturer, Begate produces and supplies complete MPO trunk fiber optic cabling solutions for high-density optical connectivity in the modern data center. Compared with the classical fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space-saving while supporting very high data rates, such as 40-Gigabit Ethernet and 100-Gigabit Ethernet.

Features of MPO MTP trunk cables

1. Factory-terminated provide consistent quality, high performance and reduce installation time
2. 100% tested for low insertion loss performance and high back reflection
3. Fiber Count: 8 fiber, 12 fiber ,24fiber trunk cable
4. Suitable for MPO application
5. Singlemode OS2 fiber
6. Type B polarity, used for 40G PSM4 QSFP+,100G PSM4 QSFP28, 400G DR4/XDR4 OSFP or QSFP-DD transceiver module
7. Optimized performance – available in elite MPO and discrete premium connector upon request
8. Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE, and RoHS
9. LSZH Jacket by default, and PVC ,OFNR ,OFNP are available.

Specifiation of OS2 SM MPO MTP Trunk cables

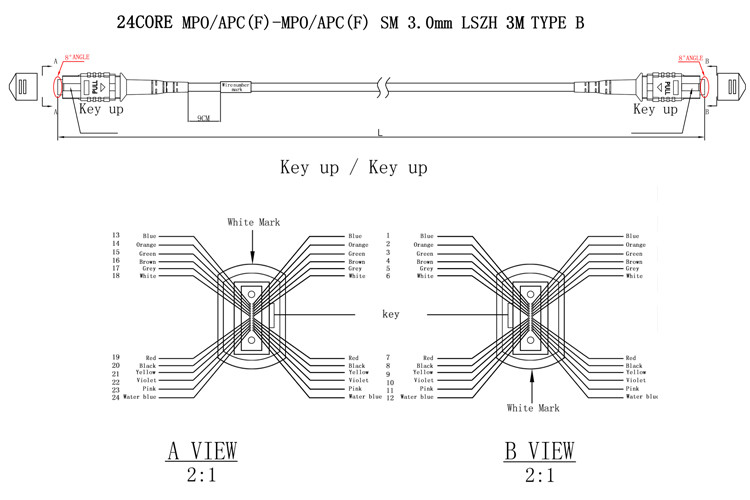

Structure diagram of OS2 SM MPO MTP Trunk cables

Ordering information of OS2 MPO MTP trunk cables

Customize your Own MPO MTP Fiber Optic Trunk cables Using the following chart.
