Name: SM OS2 8F 12F 24F Male Female Type A 100 tested MPO MTP Fiber Cable
Brand: OEM and ODM
Price: 9.99 USD

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

Ask Lasest Price

Brand Name :

OEM and ODM

Model Number :

SM 8F 12F 12F MPO MTP cable

Certification :

CE,ROHS,ISO9001,IEC and TIA

Price :

USD 9.99 / piece ~ USD 299.99 / piece

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , Cash

Supply Ability :

3000 pieces / day

Delivery Time :

Samples within 3 days, bulk orders within 12 working days

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

Overview of SM OS2 MPO MTP Fiber Cable

As an experienced and innovative fiber optic cable manufacturer, Begate produces and supplies complete MPO trunk fiber optic cabling solutions for high-density optical connectivity in the modern data center. With this MTP/MPO fiber cable, you are ready for deployment in any singlemode 9/125 MTP/MPO network. Singlemode 9/125 cables are best used for long cable runs and the push-on connectors hold them securely in place. This singlemode, MTP/MPO fiber cable is comprised of 12 fibers or 6 duplex channels within each connector. These high density cables are perfect when you have limited space and but still want that great fiber connection. It has a yellow, riser rated, LSZH jacket.

Features of SM OS2 MPO MTP Fiber Cable

Connector 1: MTP/MPO Female or MTP /MPO Male
Connector 2: MTP/MPO Female or MTP /MPO Male
Singlemode
9/125 Microns - OS2
Immune to Electrical Interference
100% Optically Inspected and Tested for Insertion Loss and Return Loss
Available Jacket: PVC, LSZH, OFNR (Riser-rated)

Applications of SM OS2 MPO MTP Fiber Cable

Fiber Network Deployments
Fast Ethernet
Gigabit Ethernet
Other Data Applications Requiring High Transfer Rates

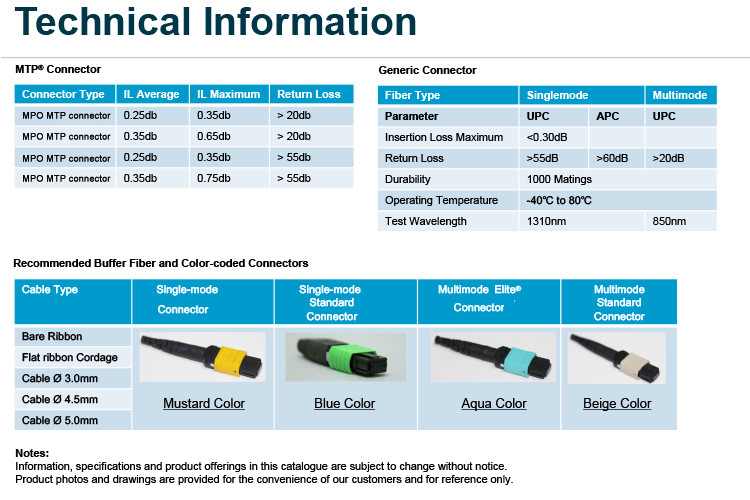

Specification of SM OS2 MPO MTP Fiber cable

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	8F/12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	8F/12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20

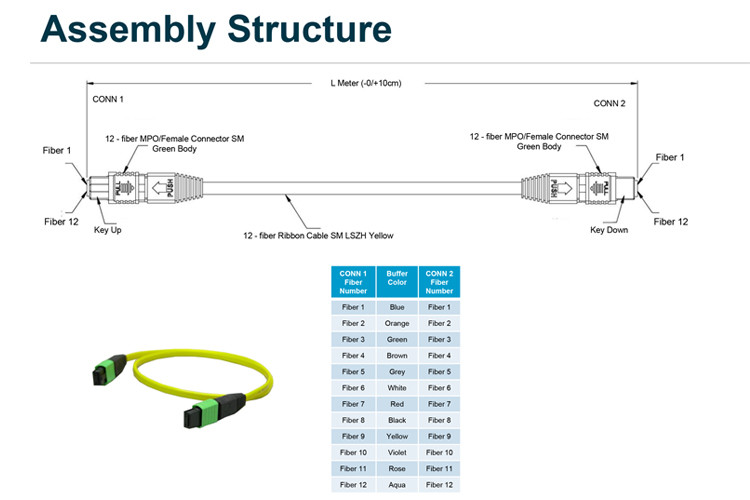

Structure of SM OS2 MPO MTP Fiber Cable

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

SM OS2 MPO MTP Fiber cable production line

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

Begate provides High Density Multi-fibers Solutions which are Fiber Optic MTP® / MPO Assemblies application in data center.
Welcome to your inquiry and we surely provide you good prices, reliable quality and great services!

Customize your Own MPO MTP Fiber Cable Using the following chart.

Product Type	Connector A	Connector B	Fiber Count	Fiber Type	Length	Polarity	Jacket
MT=MPO / MTP Trunk Cable Assemblies	MPO / M = MTP / UPC 8 Fiber Male	LC = LC / UPC	8 = 8 Fiber	OS1 = 9um Single Mode OS1	1M = 1 meter	A = Type A ( Straight Through)	PVC
MF=MPO / MTP Fan - out / Harness Fiber Optic Cable	MPO / F = MTP / UPC 8 Fiber Female	LCA= LC / APC	12 = 12 Fiber	OS2 = 9um Single Mode OS2	2M = 2 meter	B = Type B (Cross)	LSZH
MC=MPO / MTP Fiber Optic Cassette	MPO / A / M = MTP / APC 8 Fiber Male	SC = SC /UPC	24 = 24 Fiber	OM1 = 62.5um Multi Mode OM1	3M = 3 meter	C = Type C (Cross Pair)	OFNP
ML=MPO / MTP Loopback	MPO / A / F = MTP / APC 8 Fiber Female	SCA = SC / APC	48 = 48 Fiber	OM2 = 50um Multimode OM2	xx m = xx meter
MP=MPO Fiber Optic Cassette Rack Mount Holders	MPO / M = MTP / UPC 12 Fiber Male	FC = FC / UPC	72 = 72 Fiber	OM3 = 50um Multimode 10G OM3
	MPO / F = MTP / UPC 12 Fiber Female	FCA = FC / APC	96 = 96 Fiber	OM4 = 50um Multimode 10G OM4
	MPO / A / M = MTP / APC 12 Fiber Male	DLC = Dulpex LC / UPC	144 = 144 Fiber
	MPO / A / F = MTP / APC 12 Fiber Female	DLCA = Duplex LC / APC
	MPO 24 / M = MTP / UPC 24 Fiber Female
	MPO 24 / F = MTP / UPC 24 Fiber Female
	MPO 24 / A / M = MTP / APC 24 Fiber Male
	MPO 24 / A / F = MTP / APC 24 Fiber Female

Why Choose Bagate ?

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

Own factory. We can save your money(Factory-sale),
Strong R&D ability
Strictly quality control with Reliable quality(2years warranty),
Fast delivery(within 7days)
No MOQ (1piece okay)
Credit supports.
Customization(Print your logo).
Free sample
One-stop procurement of products in the telecommunication industry can be achieved.
High efficient and professional sales and aftersales services, care bout partners benefits and win-win situation.
