Elite Loss 96F MPO MTP Cable OM4 Female To Female USCONEC Connector

Elite Loss 96F MPO MTP Cable OM4 Female To Female USCONEC Connector

Elite Loss 96F MTP Trunk Cable OM4 Female to Female USCONEC connector

MPO trunk cable is designed for high-density applications, especially for data center, it facilitates rapid deployment, provides an efficient way to install a large number of cables and can reduce installation time and save space. This OM4 MPO trunk cable has 96 fibers inside. 8 MPO connectors assembled at each side.

Features of 96 F MTP Trunk Cable OM4

MTP and MPO are available
High performance in IL&RL
100% pre-terminated tested
Pulling eye design easy for cabling
Suitable for MTP/MPO application
LSZH, OFNR, OFNP available
Compliance with Telcordia GR-1435-CORE Compliant
Compliance with UL 94-V0 compliant
RoHS compliant
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Application of 96 F MTP Trunk Cable OM4

Data communication network.
Optical System Access network.
Storage area networking fiber channel.
High density architectures.

Technical specification of 96 F MTP Trunk Cable OM4

Testing item	Multi mode(PC)		Single mode (APC)
Insertion Loss(IL)	Standard	Elite	Standard	Elite
	≤0.5dB	≤0.3dB	≤0.7dB	≤0.35dB
Return Loss	≥25dB		≥60dB
Operating Temperature (°C )	-40℃ to +80℃
Wavelength(nm)	850/1300		1310/1550
Standard conformance: GR-326,GR-1435.

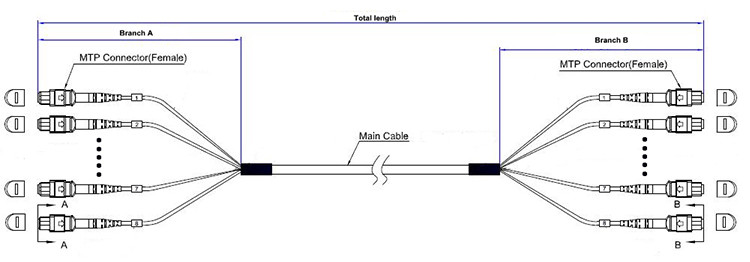

MTP Trunk Cable Assemblies and Drawing

Elite Loss 96F MPO MTP Cable OM4 Female To Female USCONEC Connector

MTP Interface Index

Connector type	Testing items	Min	Max
MTP PC	ROC_X(abs)(mm)	500
	ROC_Y(abs)(mm)	50
	Angle_X(deg)	-0.2	0.2
	Angle_Y(deg)	-0.2	0.2
	Max.DH.All Fiber(nm)	-600	600
	Max.DH.Ave(nm)	-300	300
	Max.DH.Adj(nm)	-300	300
	Max. Core Dip(nm)	-300	300
	Fiber height(nm)	-300	300
	ROC_X(abs)(mm)	1000	3000
MTP APC	ROC_X(abs)(mm)	500
	ROC_Y(abs)(mm)	50
	Angle_X(deg)	-0.2	0.2
	Angle_Y(deg)	7.8	8.2
	Max.DH.All Fiber(nm)	-600	600
	Max.DH.Ave(nm)	-300	300
	Max.DH.Adj(nm)	-300	300
	Fiber height(nm)

100% factory tested with traceable test data

Elite Loss 96F MPO MTP Cable OM4 Female To Female USCONEC Connector

Begate Fiber’s MPO MTP Patchcords product line has already accumulated more than 12 years experience in mass production. We equipped with Senko’s APC2000 polishing machine , Sumix 3D interferometer and JGR performance test . All patchcords will been tested 100% before shipping. Begate Fiber’s MPO MTP patchcords meet Telcordia GR 1435- core.

Customers` feedback

Elite Loss 96F MPO MTP Cable OM4 Female To Female USCONEC Connector

With us your money in safe and your business in safe! Any more questions upon our products and company ?Please contact our sales for more details NOW!
